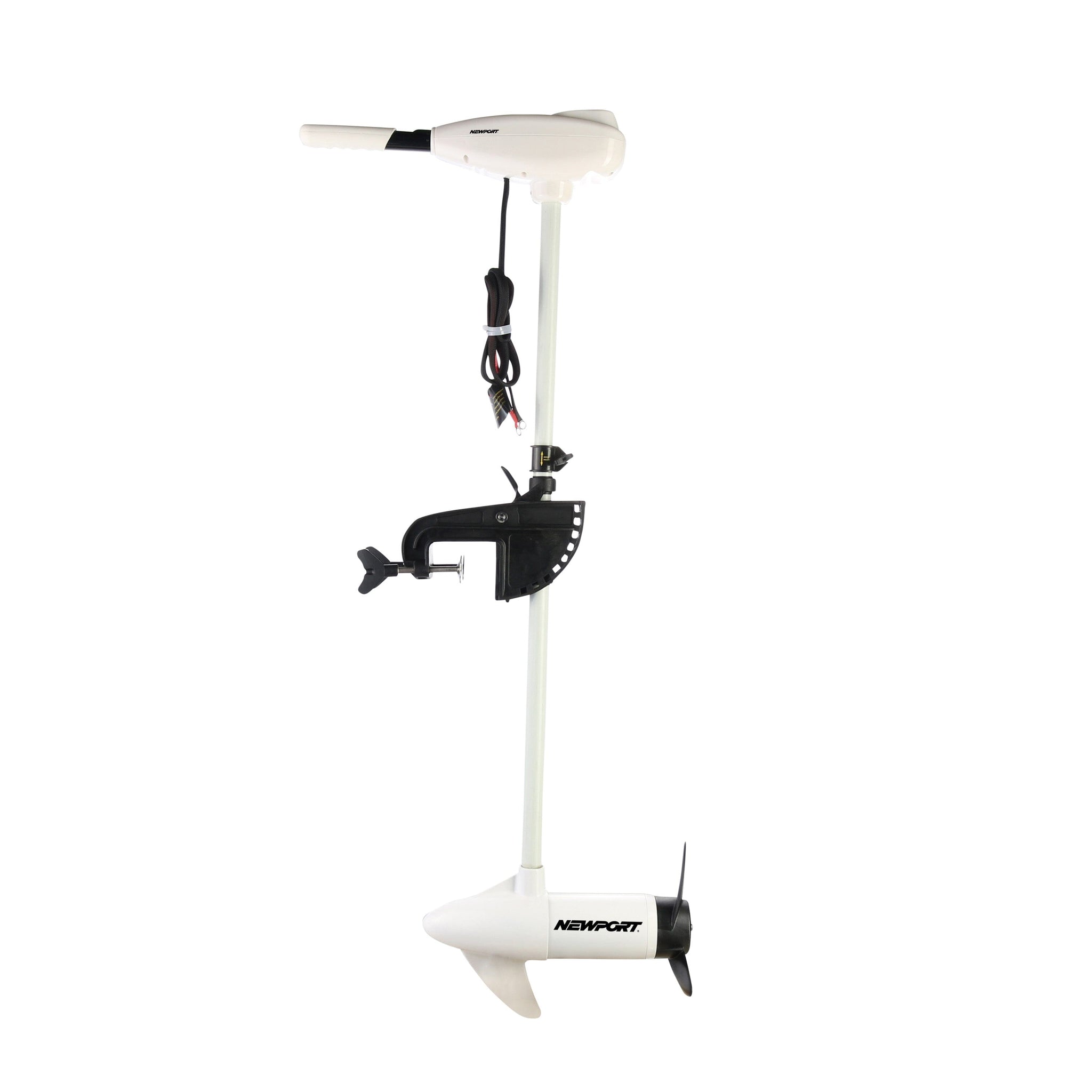

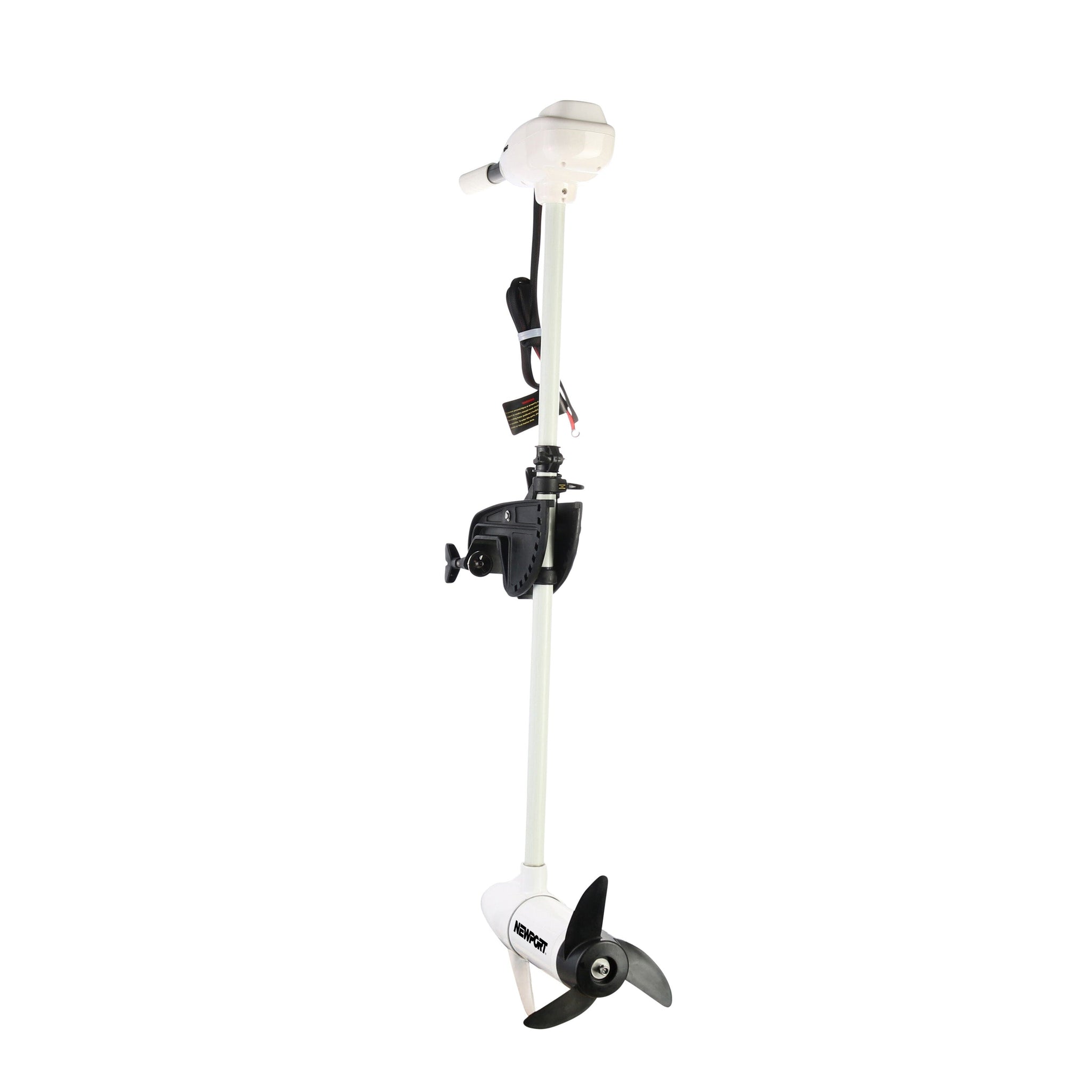

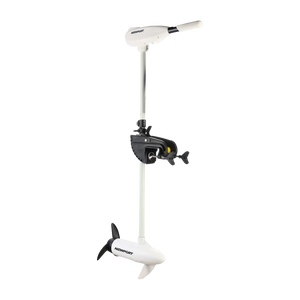

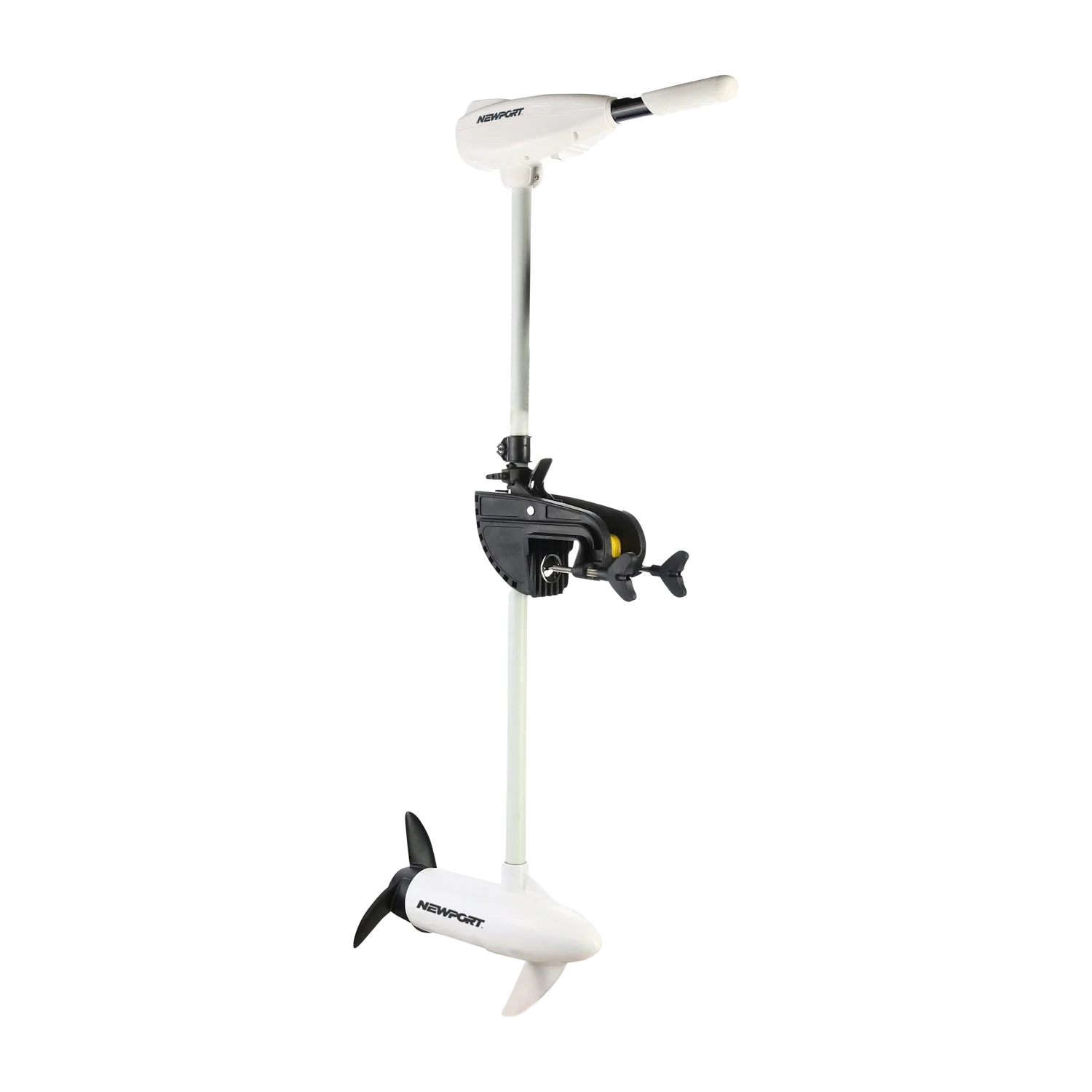

Control Sailboats and Deeper-Transom Boats with a 40" Shaft
Getting useful trolling-motor depth on a sailboat or larger boat can require more shaft length than a standard setup provides. The Newport L Series Long Shaft Trolling Motor combines a 40-inch adjustable shaft with 62lb or 86lb thrust options for secondary propulsion and maneuvering on compatible medium-to-large boats in fresh or saltwater.
Long-Shaft Control for Larger Boats and Sailboats
- ✅ 40-inch adjustable fiberglass composite shaft provides the extra reach needed for deeper transoms and larger boats
- ✅ Choose 62lb thrust with 12V power or 86lb thrust with a 24V system to match the motor and electrical setup
- ✅ Five forward and three reverse speeds provide straightforward control for maneuvering and secondary propulsion

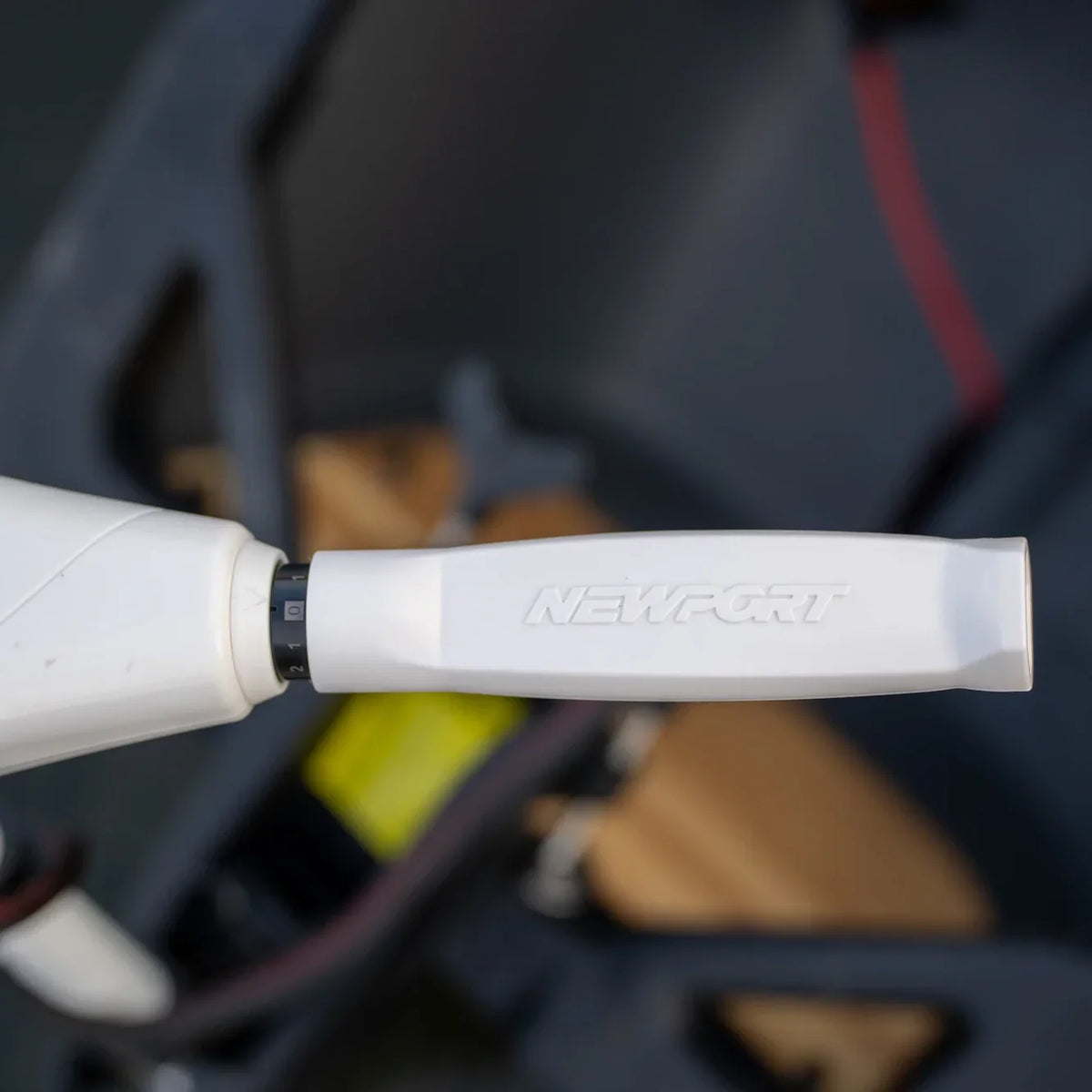

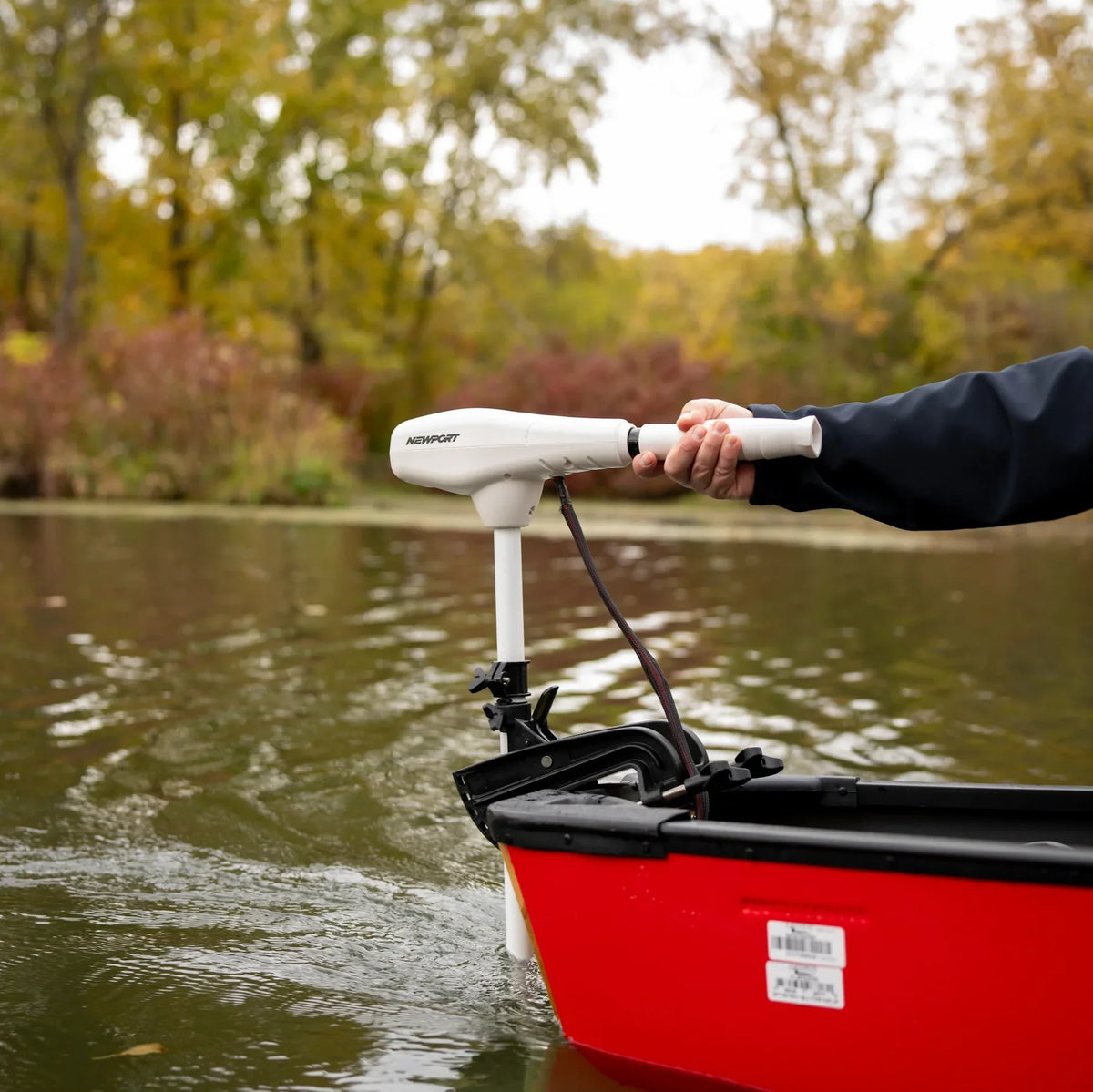

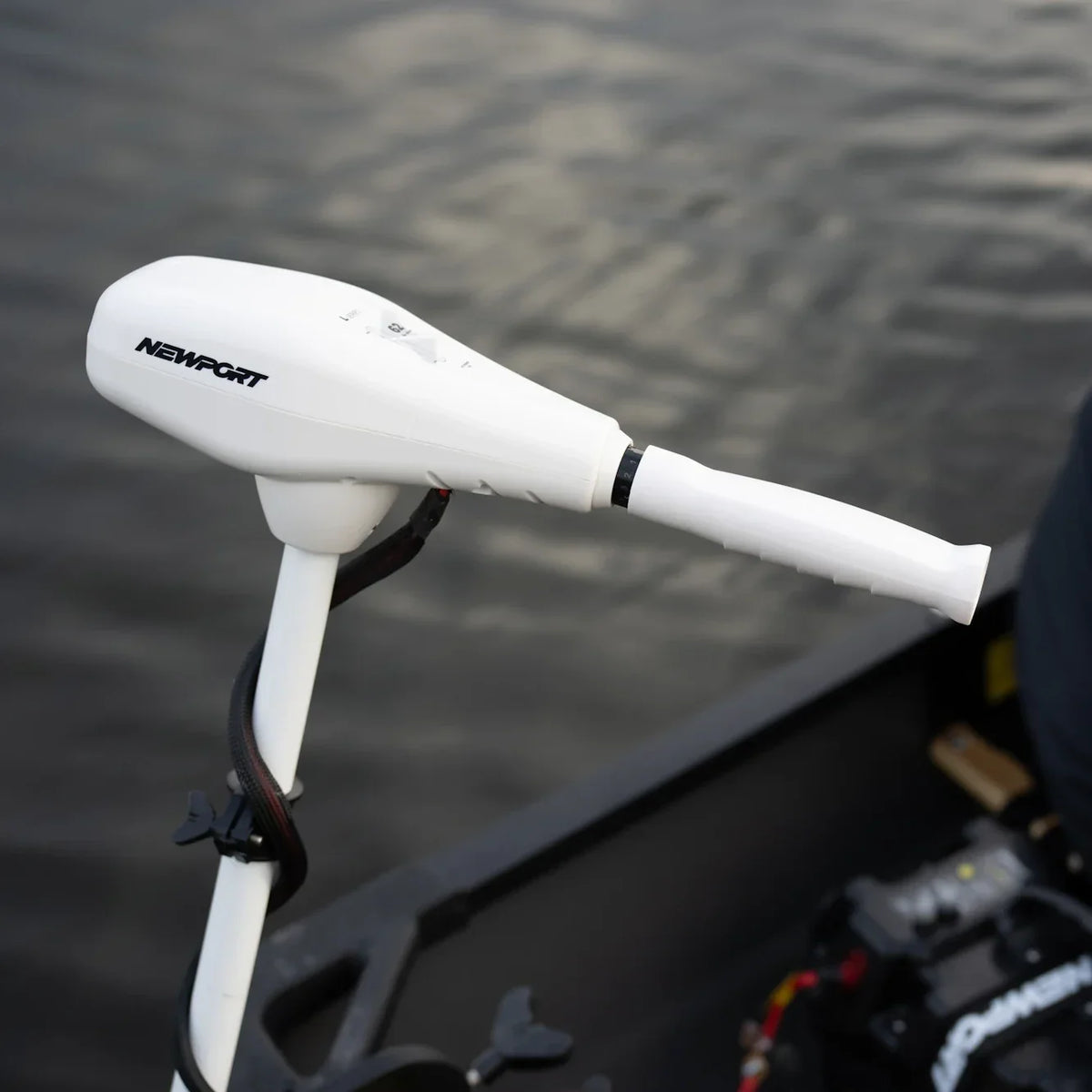

- ✅ 6-inch telescoping tiller helps put throttle and steering control within comfortable reach

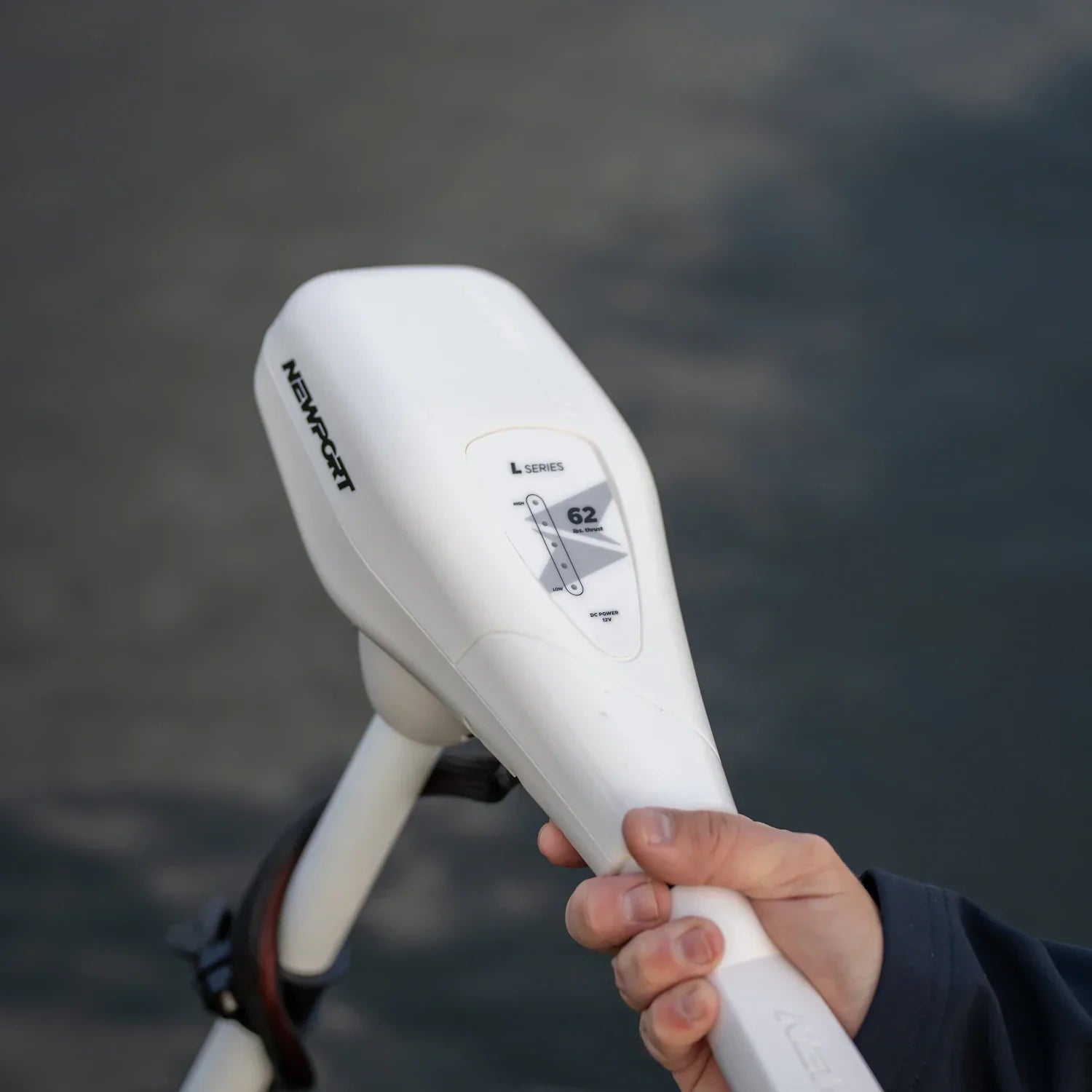

- ✅ Five-point LED battery meter provides an at-a-glance view of remaining battery charge

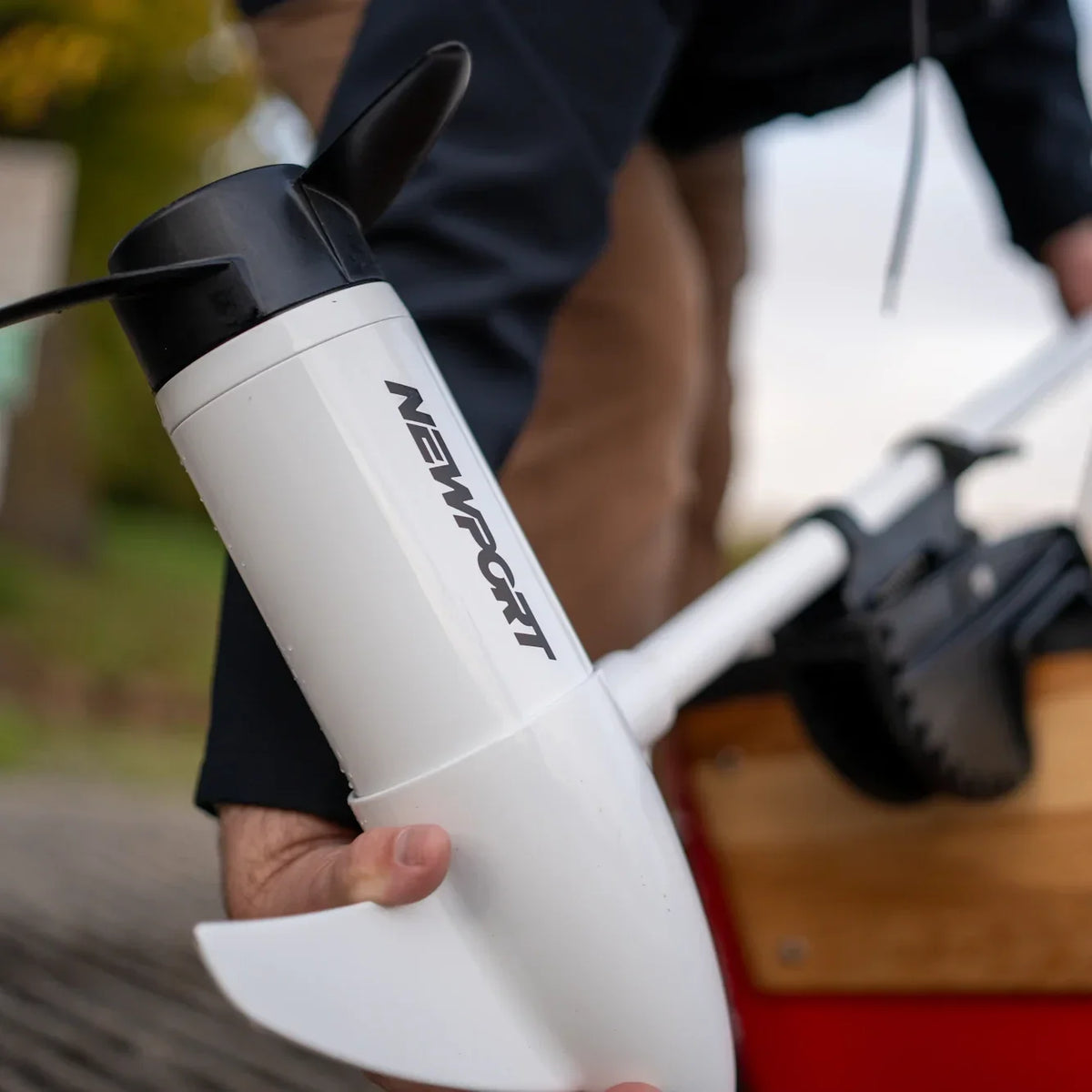

- ✅ Large three-blade propeller is paired with Newport's brushed trolling-motor system
- ✅ Freshwater and saltwater compatibility makes the L Series suitable for a range of inland and coastal boating applications
| Spec |
Details |
| Thrust Options |
62 lb. | 86 lb. |
| Shaft Length |
40 in. adjustable |
| Tiller/Handle |
6 in. telescoping |
| Input Voltage |
12V DC (62 lb.) | 24V DC (86 lb.) |
| Weight |
23 lb. (62 lb.) | 25 lb. (86 lb.) |
| Motor |
Brushed |
| Speeds |
5 forward | 3 reverse |
| Propeller |
Large 3-blade |
| Maximum Amp Draw |
50A |
| Battery Meter |
5-point LED |
| Water Compatibility |
Freshwater and saltwater |
| Mount |
Standard transom mount |
| Horsepower Equivalent |
0.93 HP (62 lb.) | 1.5 HP (86 lb.) |
Real-World Performance

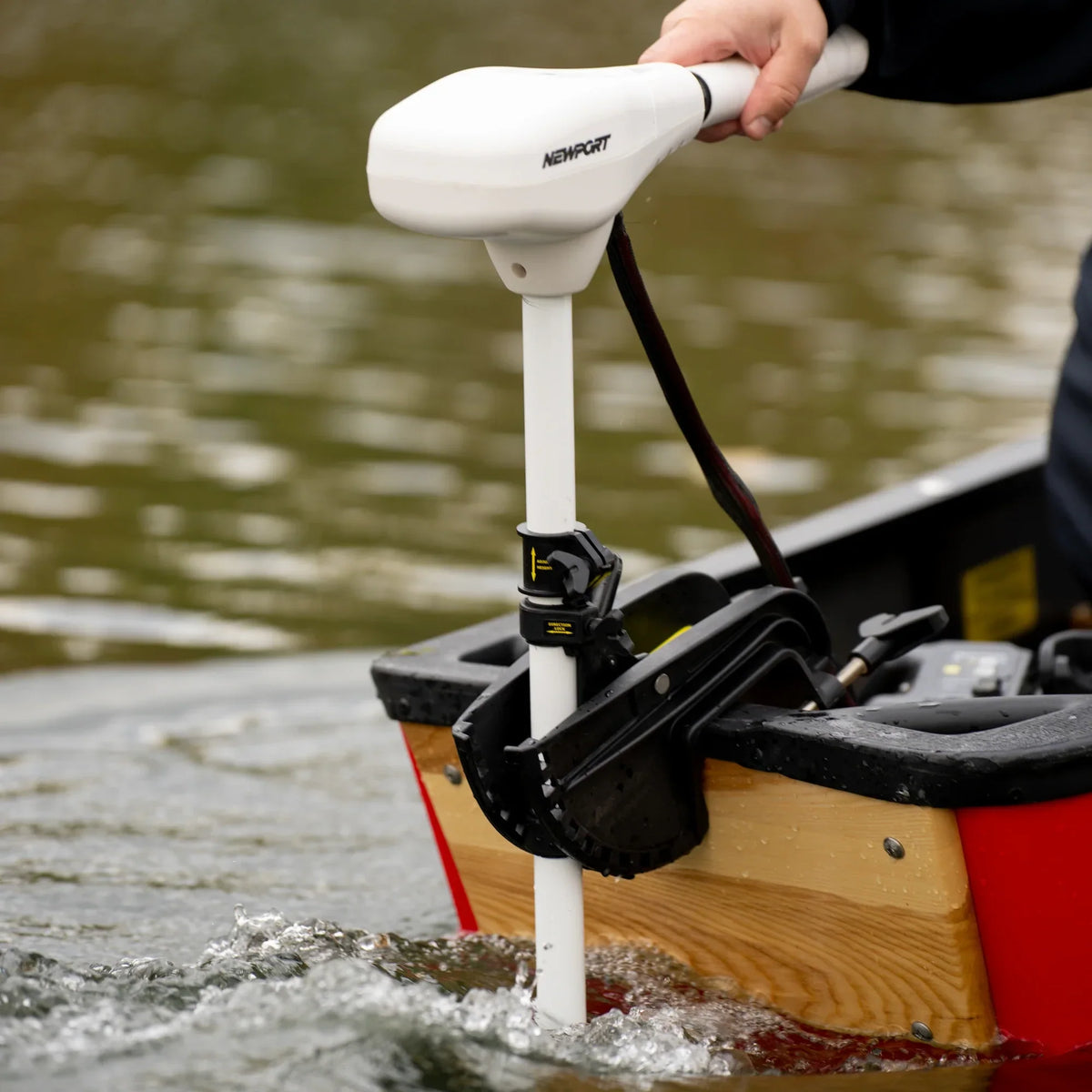

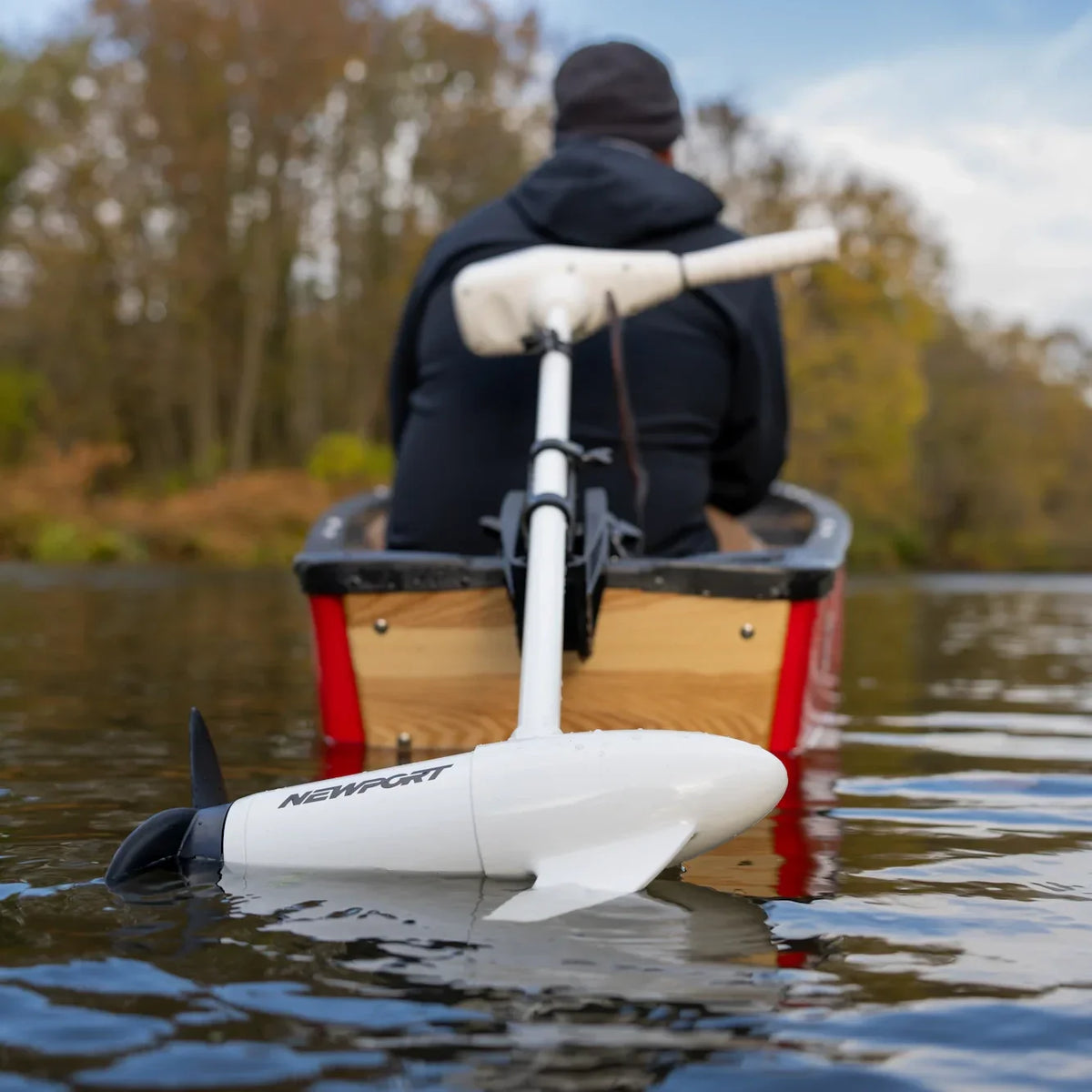

On a sailboat or deeper-transom fishing boat, adjust the 40-inch shaft so the propeller reaches an appropriate operating depth, then use the telescoping tiller and eight fixed speeds for low-speed maneuvering and secondary propulsion. The long-shaft configuration is particularly useful where a shorter trolling motor would struggle to keep the propeller properly submerged.
Give a Deeper Transom the Reach It Needs
Choose the L Series when your boat calls for a long-shaft transom motor and straightforward electric control rather than a short-shaft trolling setup.
Frequently Asked Questions About the Newport L Series
Is the Newport L Series suitable for sailboats?
Yes. Newport identifies the L Series for medium-to-large boats and sailboats where its adjustable 40-inch shaft can accommodate deeper transoms. It uses a standard transom mount, so the individual boat's mounting arrangement and required shaft depth should still be confirmed.
Should I choose the 62lb or 86lb L Series motor?
The two versions differ in thrust and electrical requirements: the 62lb model operates on 12V, while the 86lb model requires 24V. Select the version appropriate for your boat and make sure the battery system matches the chosen motor.
What battery does the Newport L Series require?
The 62lb L Series operates on a 12V deep-cycle marine battery. The 86lb version requires a 24V system, which can be supplied by two suitable 12V deep-cycle batteries wired in series.
Can the Newport L Series be used in saltwater?
Yes. Newport specifies the L Series for both freshwater and saltwater use. Newport recommends rinsing the motor with fresh water after saltwater use.
What comes with the Newport L Series trolling motor?
The package includes the 40-inch-shaft L Series motor, large three-blade propeller, propeller installation hardware, drive pin, washer, tightening nut, spanner/wrench, and the appropriate circuit breaker for the selected model.
