Hold Your Line When Current, Wind, and Cover Fight Your Kayak
Good kayak positioning gets harder when current pushes the stern, wind knocks you off line, or a tight turn around cover demands more steering authority. The Newport NK180 Series Control Foil helps the NK180 HD and NK180PRO track straighter, turn with more authority, and maintain cleaner water around the prop so you can spend less effort correcting the kayak and more time fishing the line you want.
More Control Where Kayak Positioning Matters Most
- ✅ Hold a cleaner line through current and wind with improved directional tracking and less unwanted drift
- ✅ Make tighter, more controlled turns around docks, laydowns, grass edges, oyster bars, and other structure where boat position affects your next cast
- ✅ Gain more low-speed turning authority for precise adjustments when picking apart cover instead of simply traveling from spot to spot
- ✅ Keep cleaner water around the prop through turns and shallow-water operation with an integrated cavitation plate designed to reduce prop ventilation
- ✅ Improve control without sacrificing the speed you bought the motor for—the hydrodynamic profile showed no measurable reduction in top speed in Newport testing
- ✅ Upgrade an NK180 HD or NK180PRO without drilling, cutting, or permanently modifying the motor
- ✅ Fish the same control upgrade in freshwater or saltwater with a purpose-built composite foil and stainless steel mounting hardware
| Spec |
Details |
| Compatibility |
Newport NK180 HD and NK180PRO |
| Material |
Marine-grade UV- and impact-resistant composite |
| Hardware |
Stainless steel screws |
| Installation |
Two-piece clamshell; screwdriver installation |

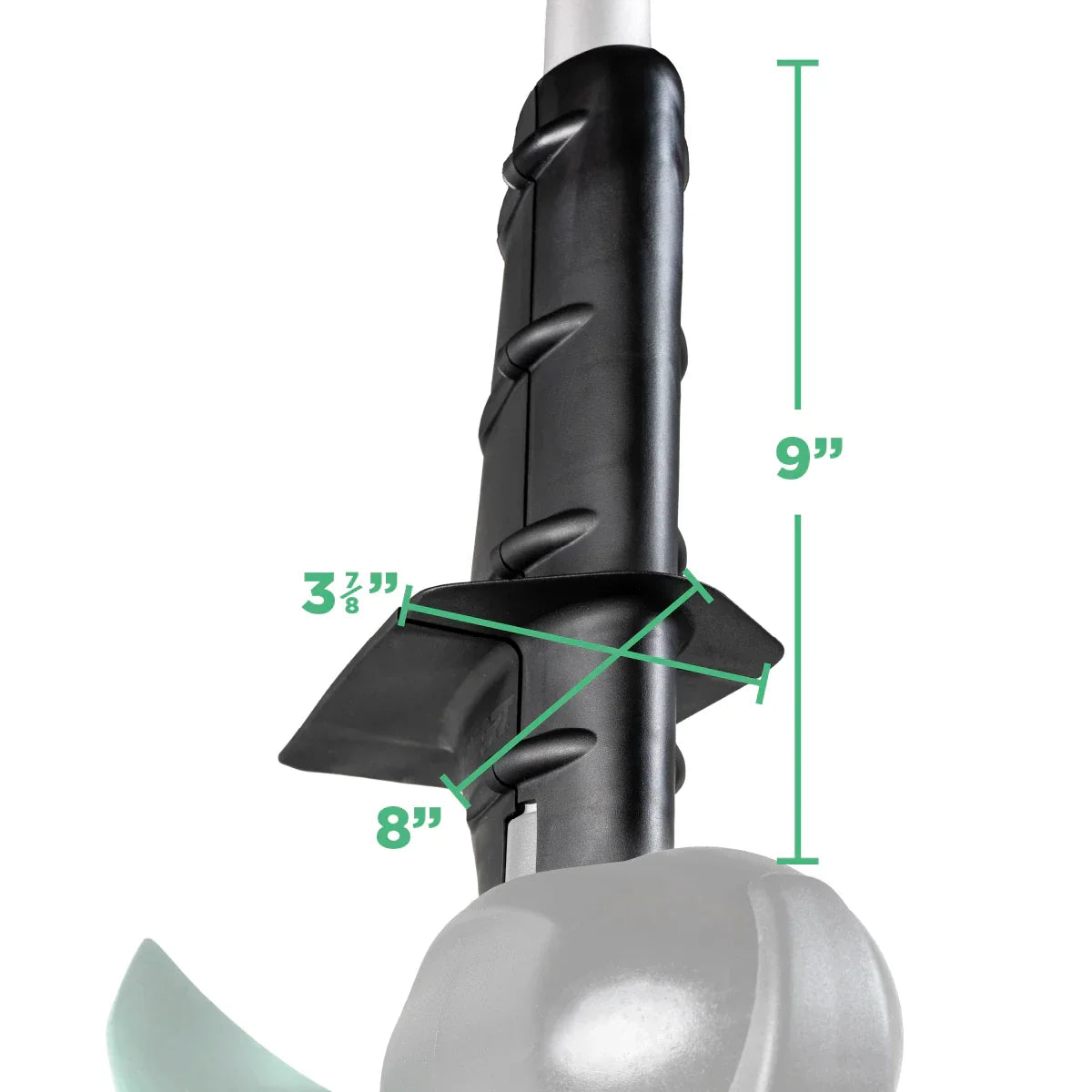

| Dimensions |
8 in. L x 3 7/8 in. W x 9 in. H |
| Weight |
0.7 lb. |
| Drag Impact |
No measurable reduction in top speed |
| Water Use |
Freshwater and saltwater |
| Motor Modification |
None required |
Real-World Performance

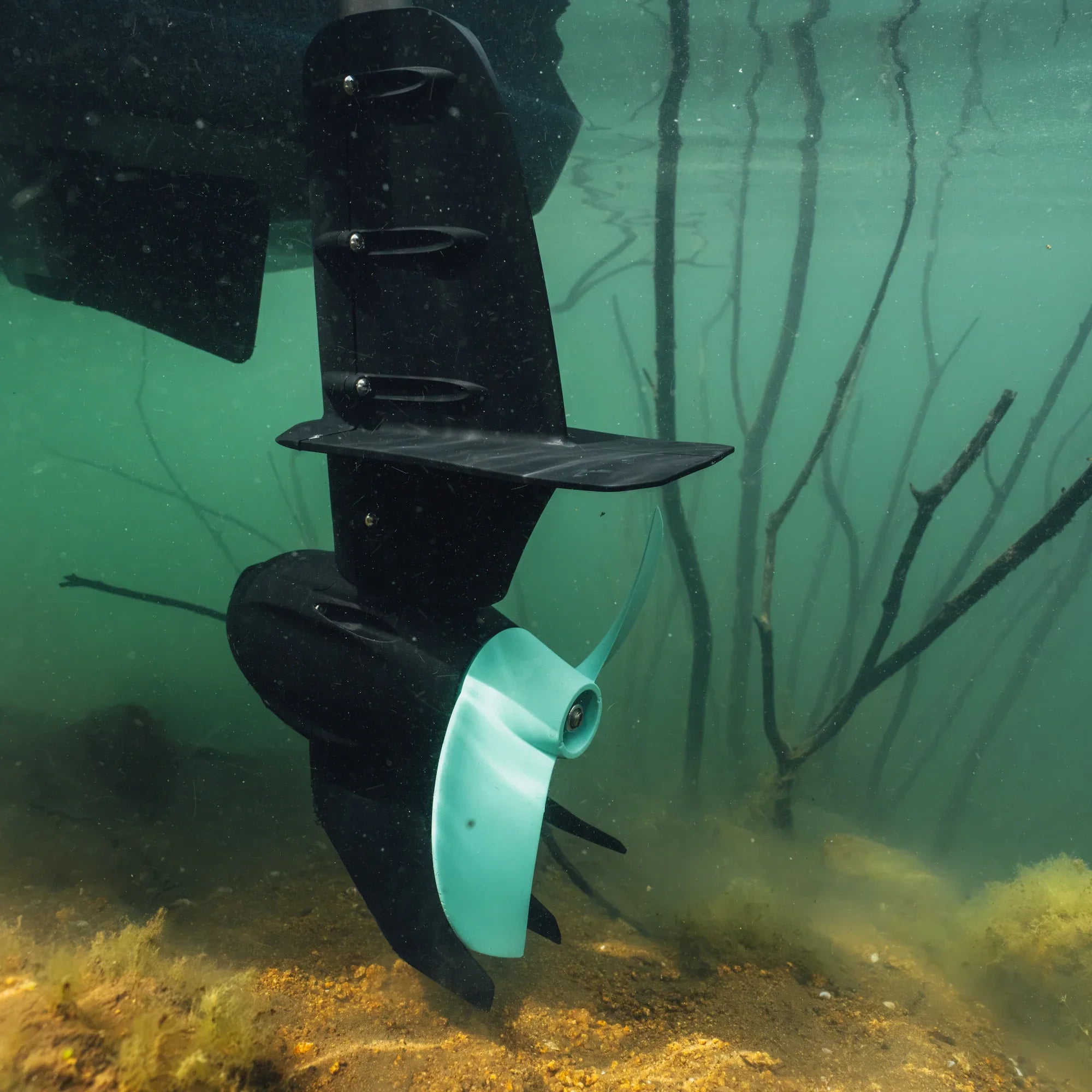

Work a current seam without constantly correcting your heading, make a tighter turn back toward a laydown, or ease across skinny water with cleaner flow around the prop. The foil is designed to make the NK180 respond more predictably when precise positioning matters, while its integrated cavitation plate helps reduce ventilation through turns and at shallower operating depths.
Spend Less Time Correcting and More Time Making the Next Cast
Add the Control Foil when you want your NK180 HD or NK180PRO to hold a better line and respond with more authority in the water you actually fish.
Frequently Asked Questions About the Newport NK180 Series Control Foil
What does the NK180 Series Control Foil improve on the water?
It improves directional tracking, low-speed turning authority, and control in current and wind. For anglers, that means fewer steering corrections and more precise kayak positioning when fishing structure, current seams, tidal water, and other areas where holding a line matters.
How does the cavitation plate help in shallow water and turns?
The integrated cavitation plate helps keep clean water around the prop and reduce ventilation, particularly through harder turns and at shallower operating depths. That helps the prop maintain better bite when those conditions would otherwise make it easier to draw air.
Will the Control Foil fit the original NK180 or NK180S?
No. This version is precision-molded specifically for the NK180 HD and NK180PRO and is not compatible with the original NK180/NK180S or other Newport motors.
Where should the Control Foil sit on the NK180 shaft?
Newport specifies positioning the foil all the way down against the motor pylon. Its alignment slot integrates with the small fin on the aft side of the pylon where the pylon meets the shaft.
Does installing the Control Foil require modifying the motor?

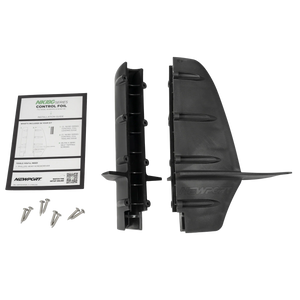

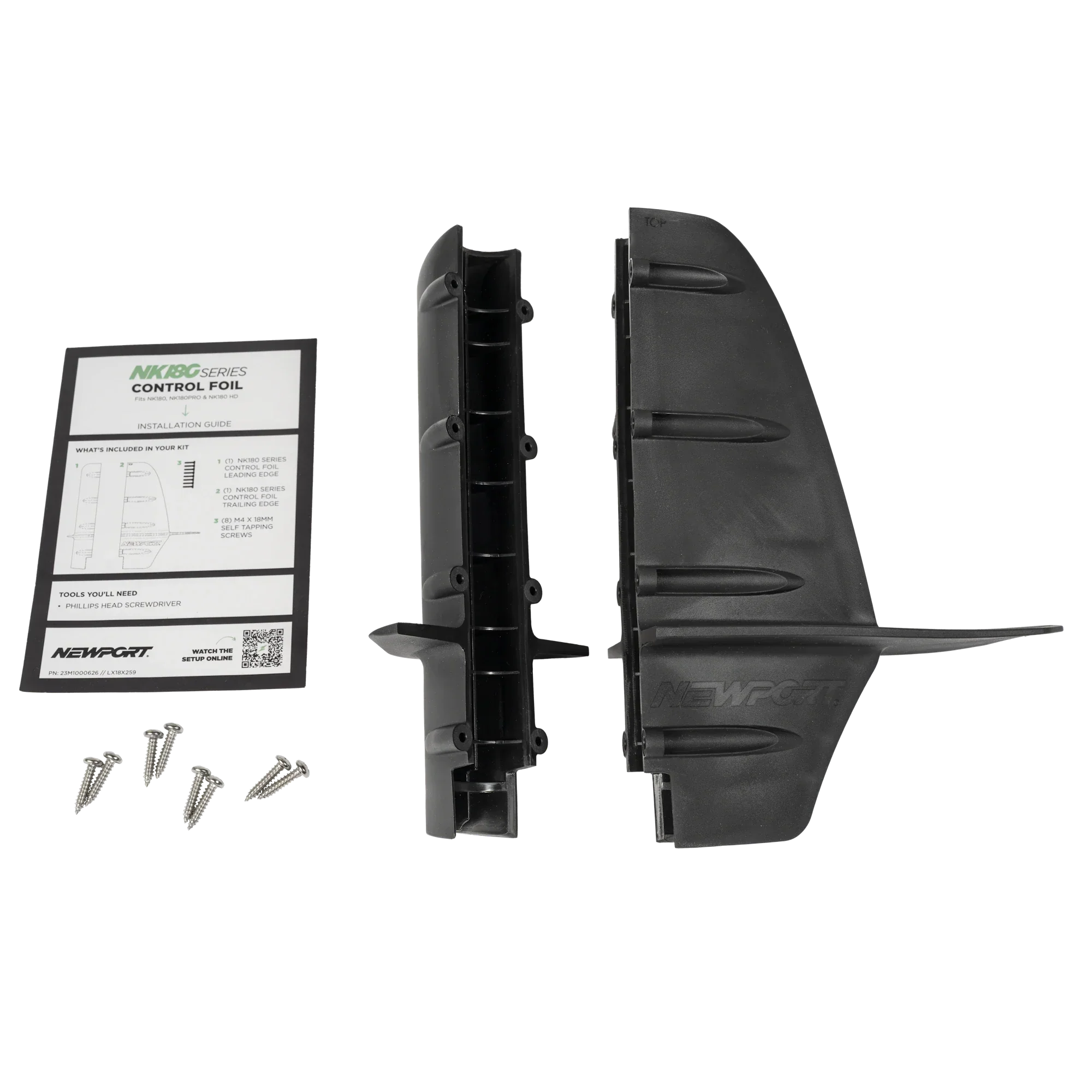

No. The two-piece clamshell design wraps around the shaft and secures with the included stainless steel hardware using a screwdriver, with no drilling, cutting, or permanent motor modification required.
