Protect Your Newport Motor in Rocks, Weeds, and Shallow Water
Rocky shorelines, submerged roots, vegetation, and rough launch areas can put an exposed lower unit in harm's way. The Newport NK300/NT300 HD Rock Guard adds purpose-built protection around the propeller and motor pylon while preserving the water flow these motors were designed around.

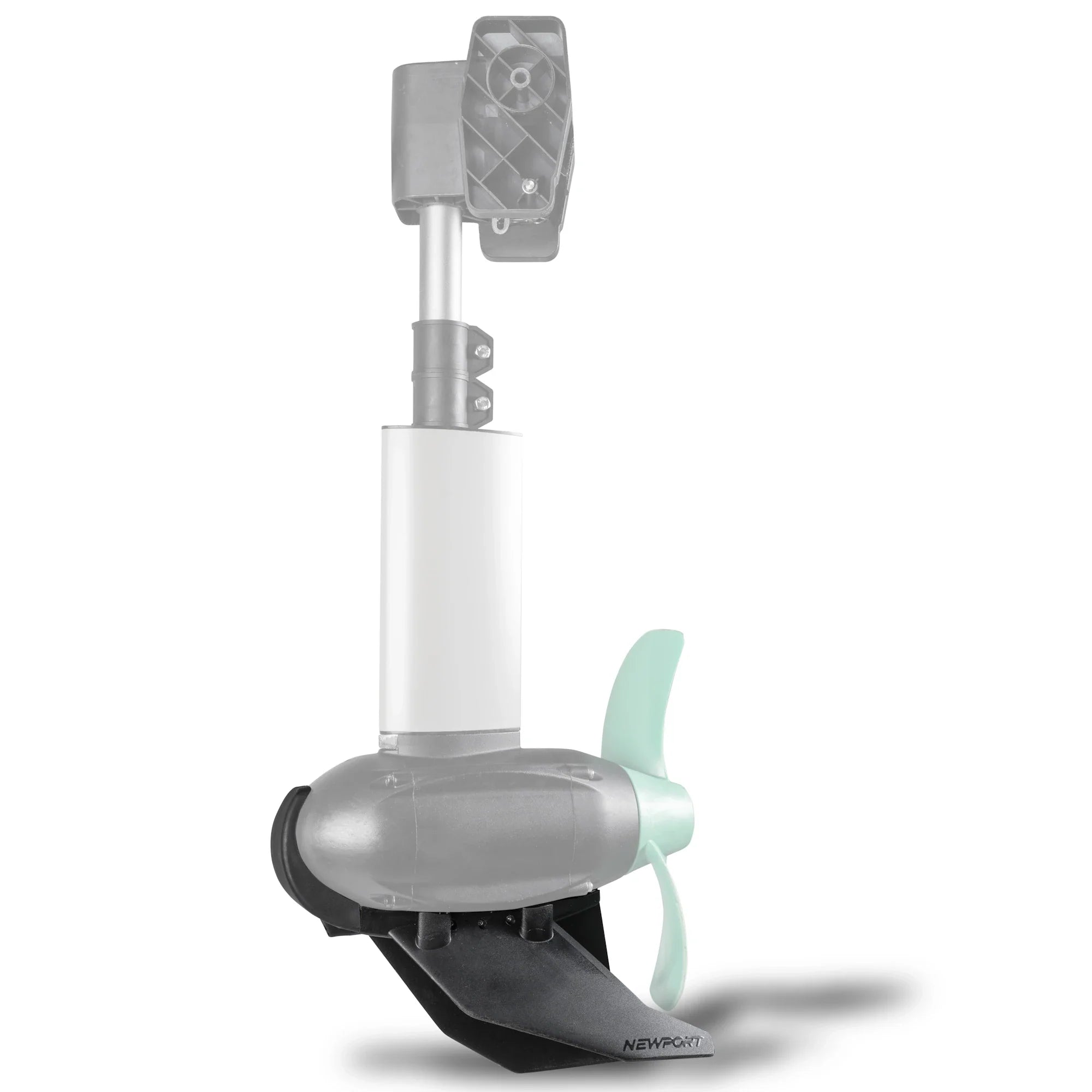

Purpose-Built Protection for the NK300 HD and NT300
- ✅ Purpose-built for the Newport NK300 HD and NT300 using their shared housing geometry

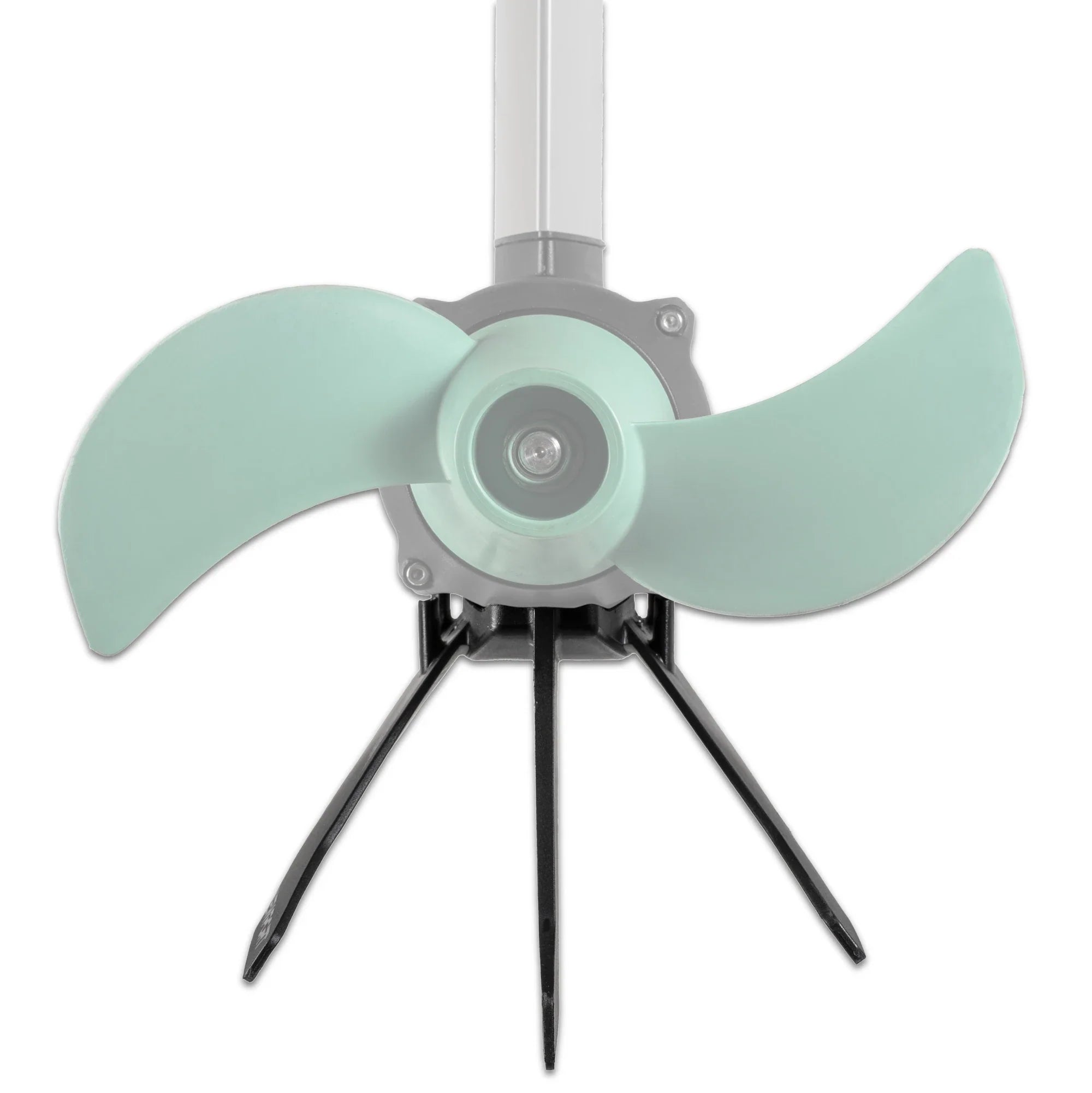

- ✅ Three raked deflection fins help shield the propeller from rocks, roots, stumps, and submerged debris while shedding vegetation

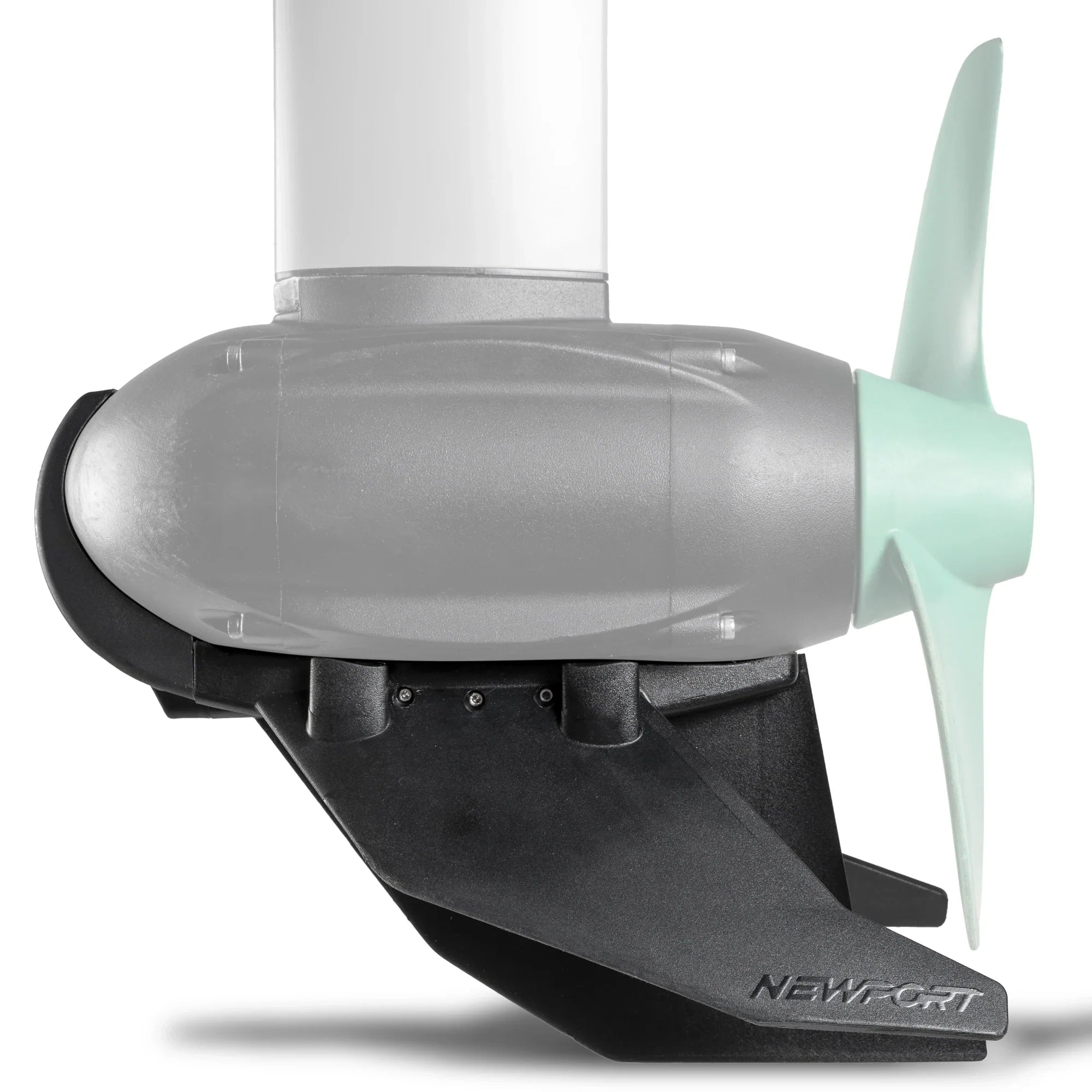

- ✅ Wrap-around nose protection helps shield the motor pylon from direct impacts
- ✅ Nylon 6/6 composite construction is rated by Newport for UV exposure, saltwater, and impact resistance
- ✅ Partial-wrap design leaves the front open to preserve water flow, with Newport specifying no drag or speed reduction
- ✅ Replaces the original skeg without drilling or permanent motor modifications
- ✅ Stainless mounting hardware and a 2.5mm Allen key are included for installation
| Spec |
Details |
| Compatibility |
Newport NK300 HD and NT300 |
| Material |
Nylon 6/6 composite |

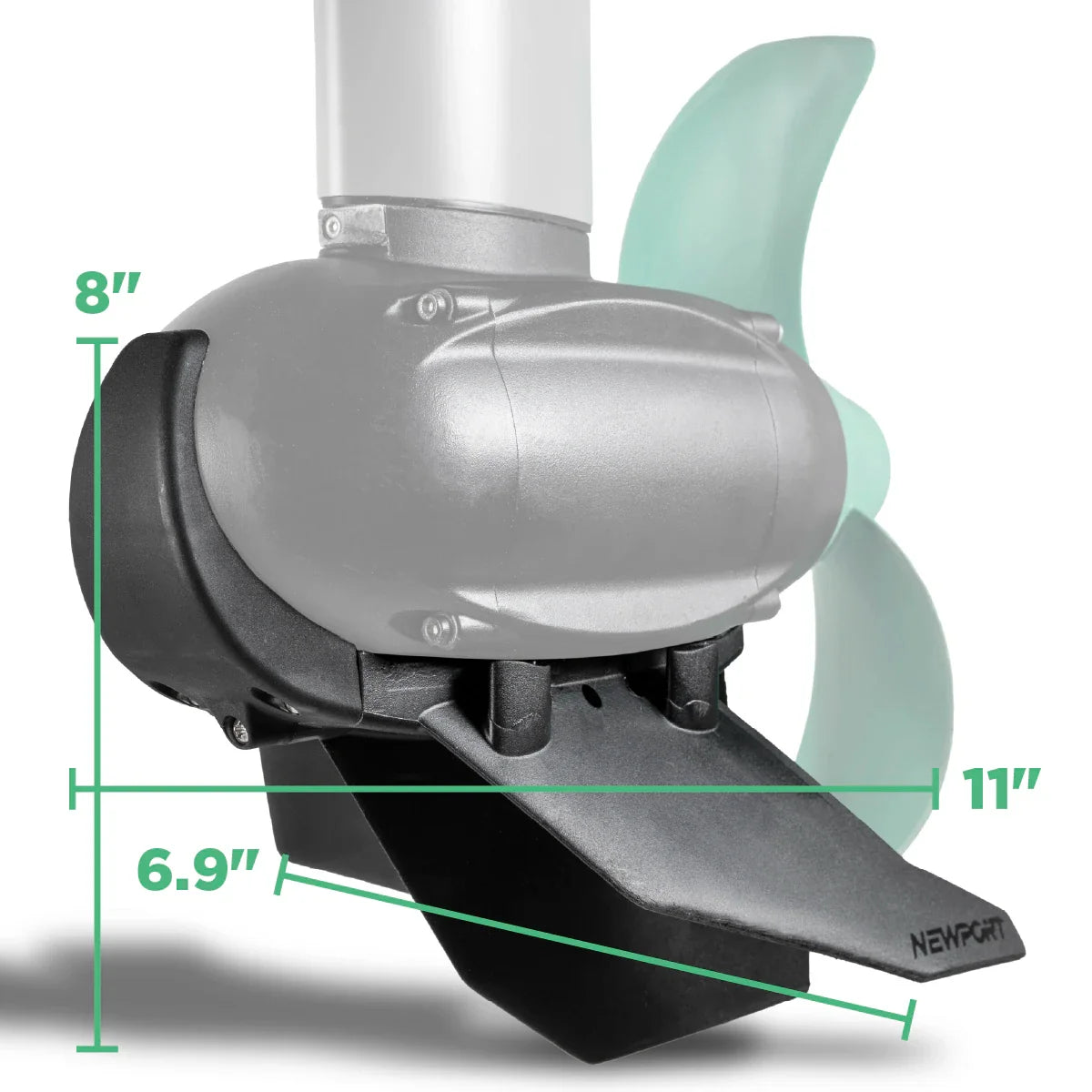

| Dimensions |
11 in. L x 6.9 in. W x 8 in. H |
| Weight |
0.81 lb. |
| Prop Coverage |
Partial wrap with open front |
| Saltwater Safe |
Yes |
| Installation |
Direct skeg replacement; no drilling or motor modification required |
| Included Tool |
2.5mm Allen key |
Real-World Performance

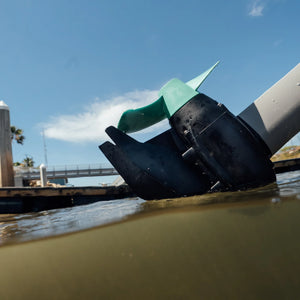

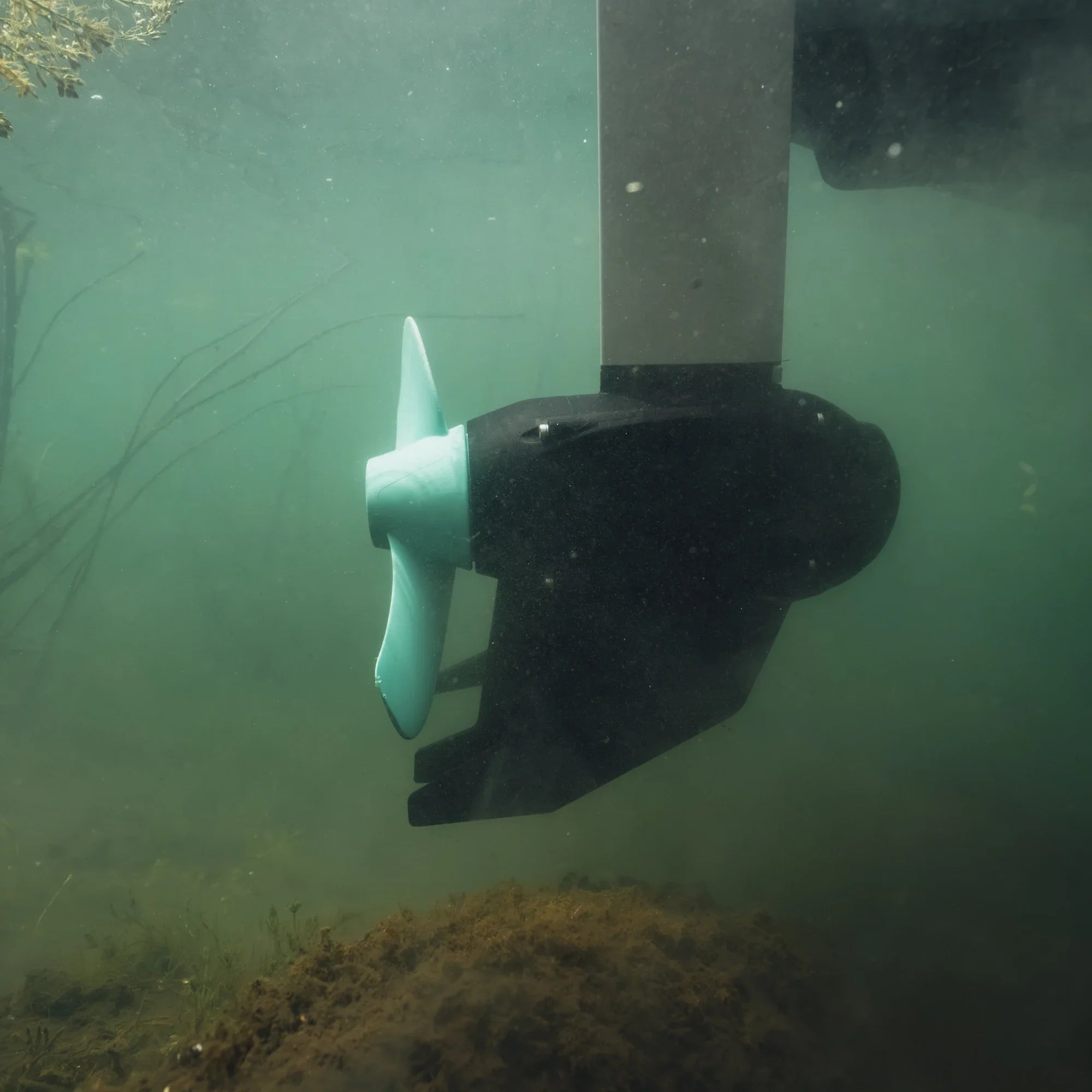

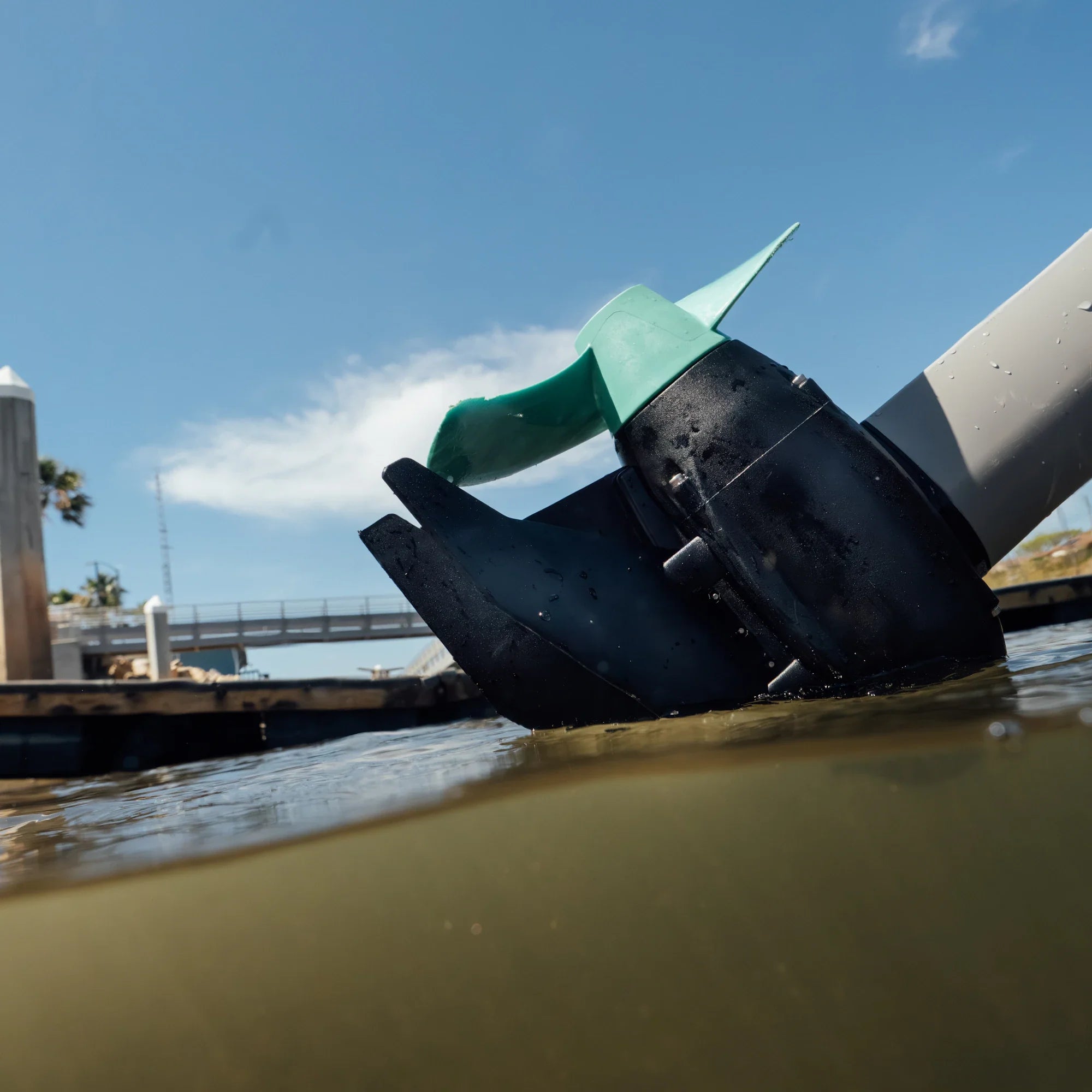

When fishing rocky creeks, shallow flats, stump-filled backwaters, or vegetation, the guard places its three fins and wrap-around nose between common underwater hazards and the motor's propeller and pylon. The integrated skeg replaces the original skeg, while the open-front design maintains water flow around the lower unit instead of fully enclosing the prop.
Add Protection Where Your Newport Motor Needs It
Equip an NK300 HD or NT300 for water where rocks, roots, weeds, and submerged debris make lower-unit protection worth adding to the setup.
Frequently Asked Questions About the Newport NK300/NT300 HD Rock Guard
Will this Rock Guard fit both the Newport NK300 HD and NT300?
Yes. Newport specifies this Rock Guard for both the NK300 HD and NT300, which share compatible housing geometry.
Does installation require drilling or modifying the motor?
No. Installation replaces the motor's original skeg with the Rock Guard skeg and attaches the nose cap with the supplied hardware; Newport specifies that no drilling or motor modification is required.
What tools are needed to install the Rock Guard?
Newport's installation guide calls for a Phillips screwdriver and 2.5mm Allen key. The 2.5mm Allen key is included with the kit.
What comes with the NK300/NT300 HD Rock Guard?

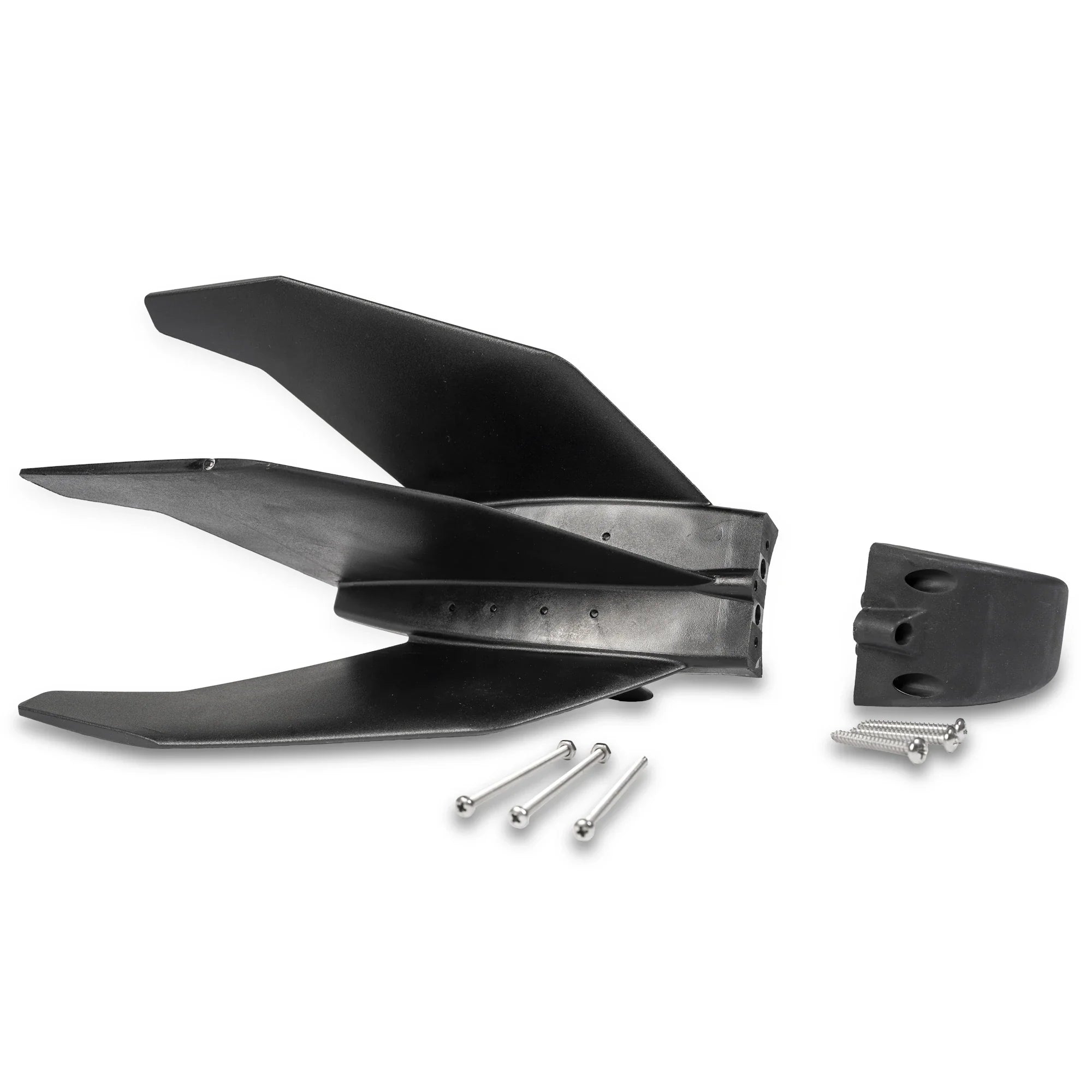

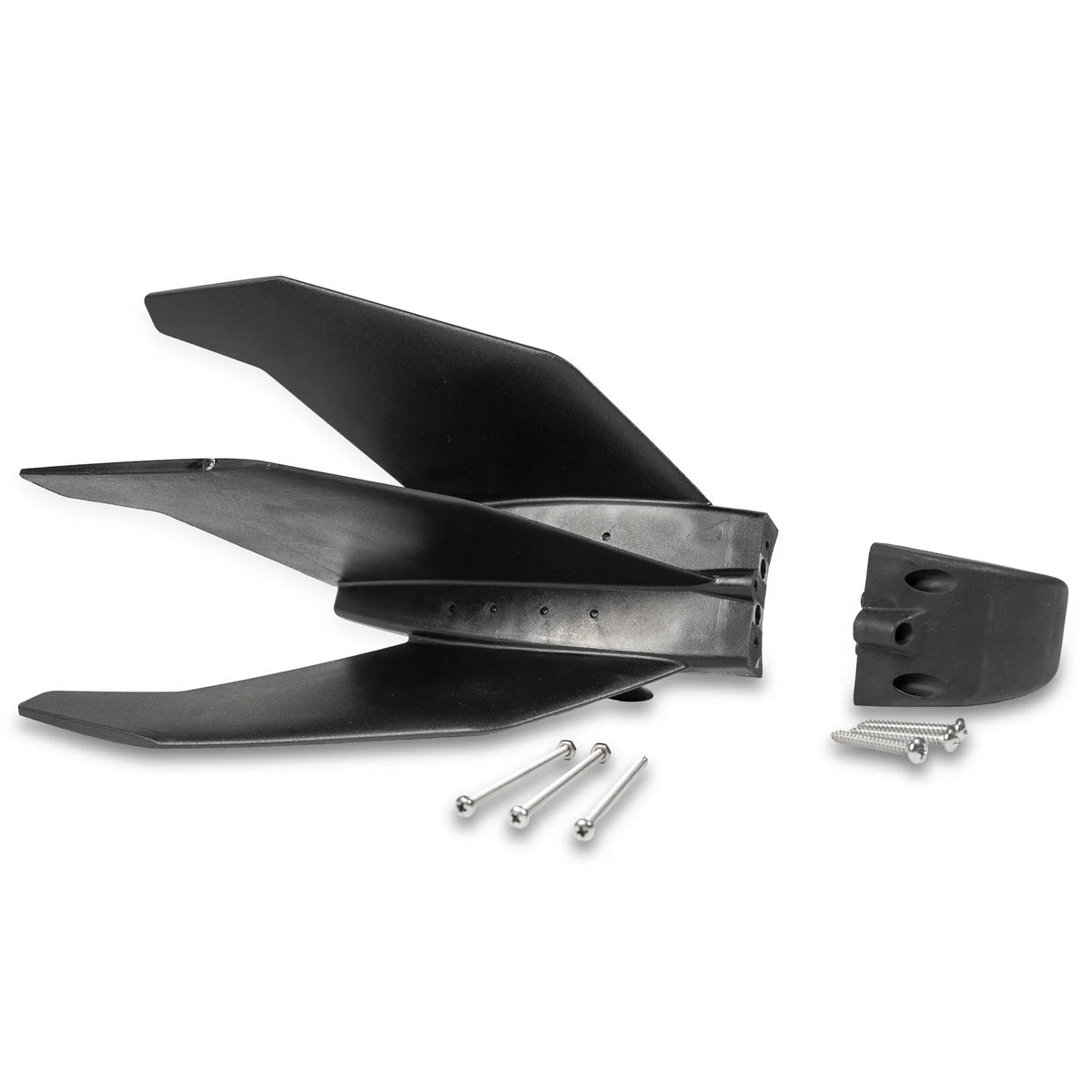

The kit includes the Rock Guard nose cap, Rock Guard skeg, three M4 x 30mm self-tapping screws, three M3 x 55mm socket-cap bolts, three M3 nuts, a 2.5mm Allen key, and installation guidance.
Can I use this Rock Guard in saltwater?
Yes. Newport lists the Nylon 6/6 composite as UV- and saltwater-resistant and specifies the Rock Guard as saltwater safe.
