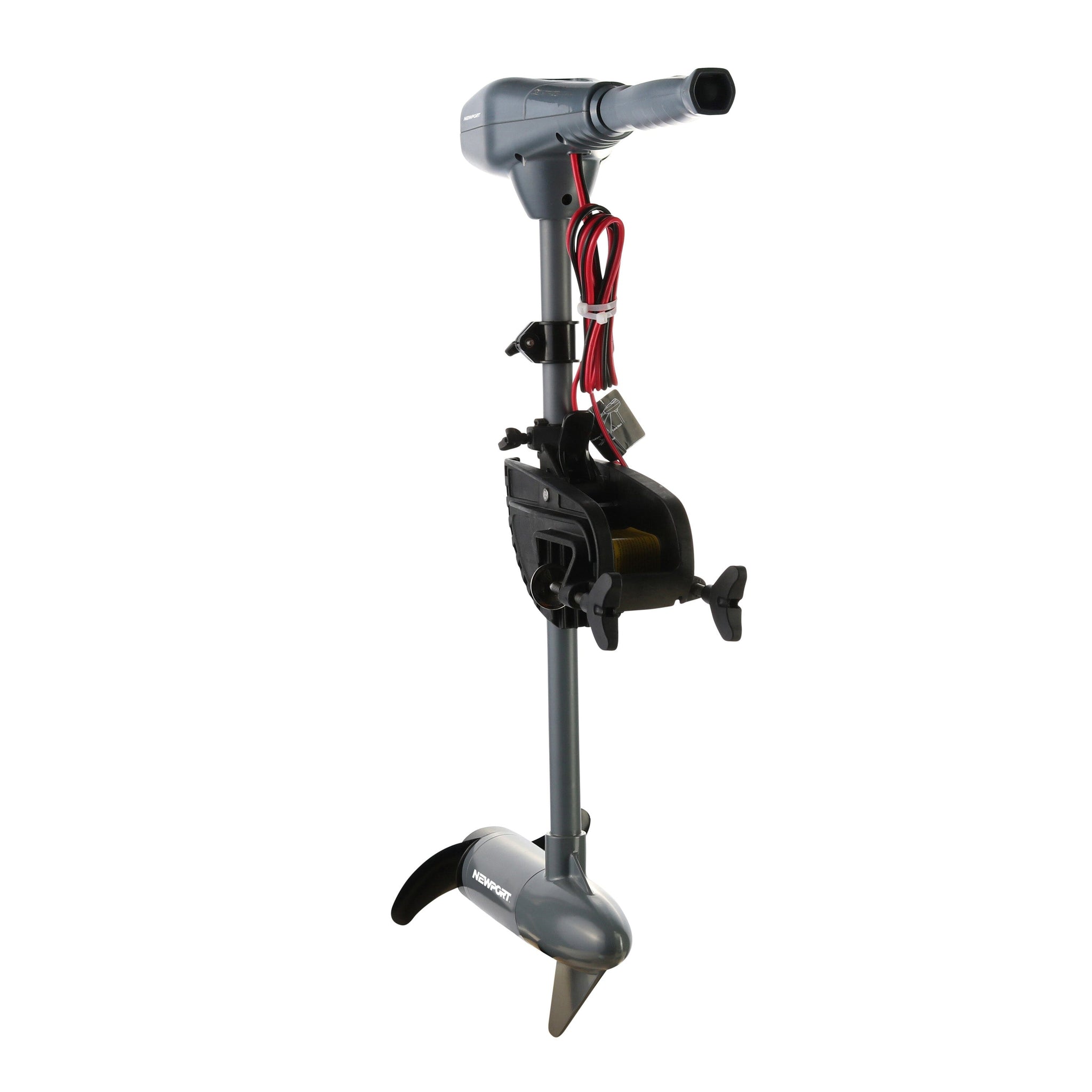

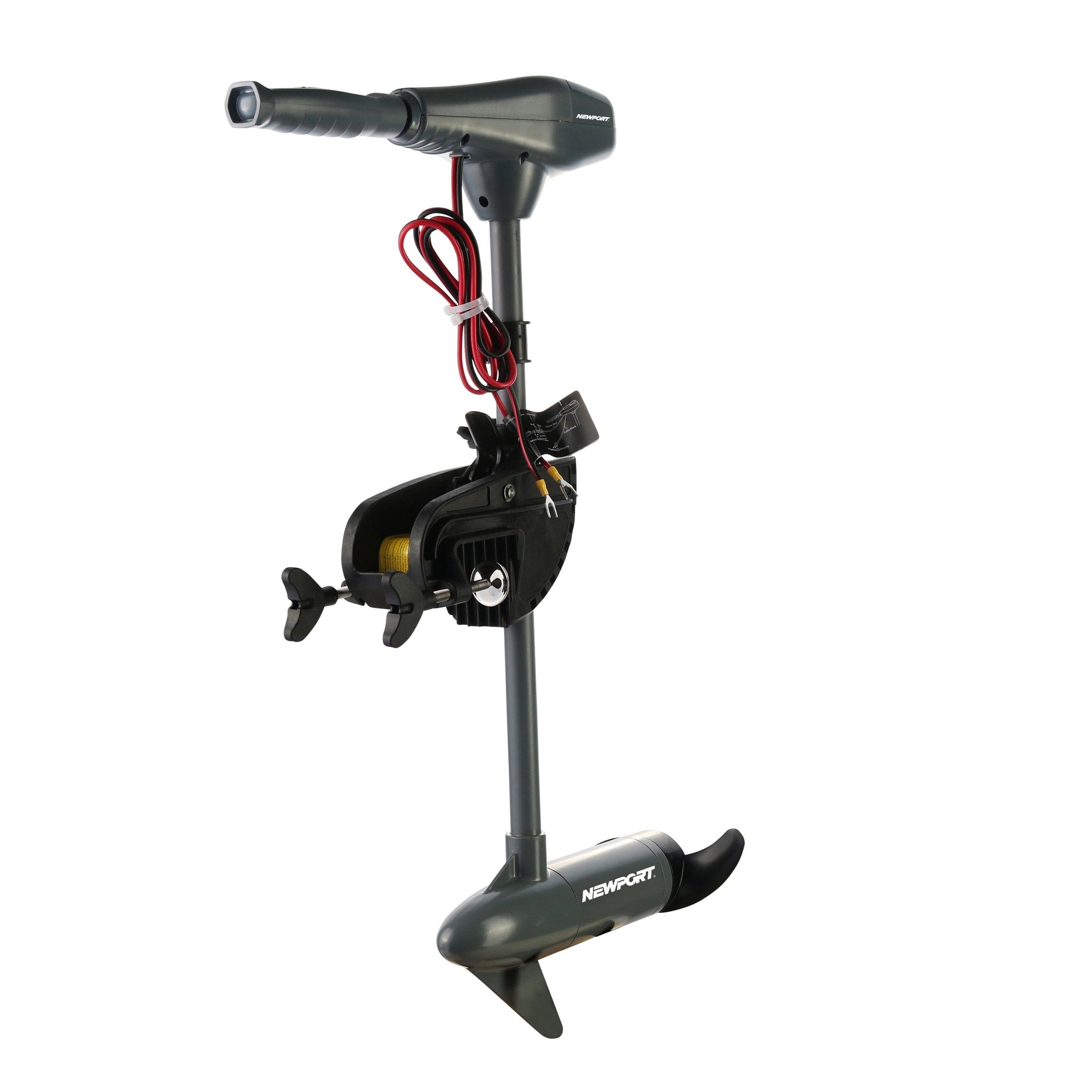

Spend Less Time Paddling and More Time Fishing from Your Kayak

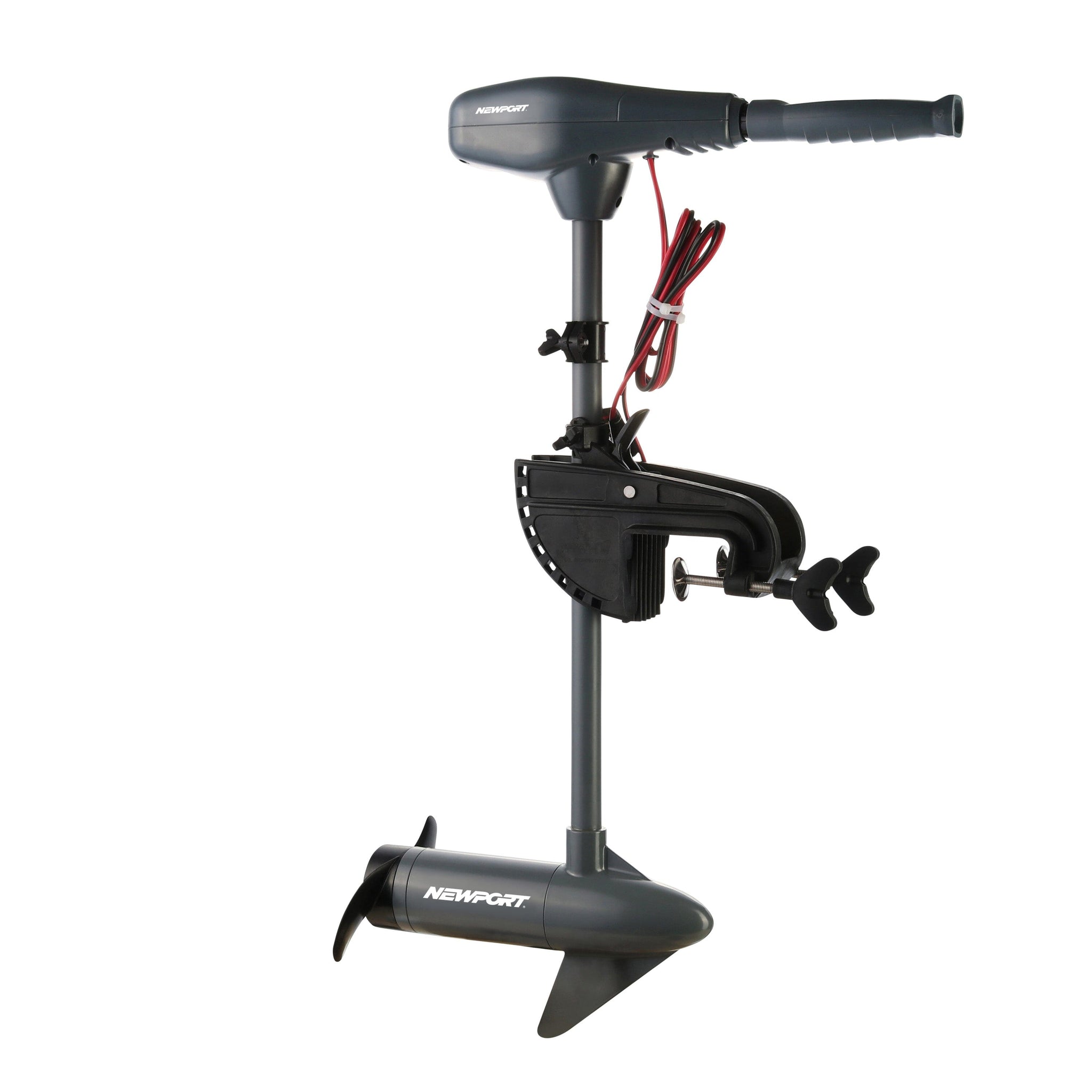

When the next shoreline, point, or stretch of productive water is farther than you want to paddle, the Newport Kayak Series Trolling Motor gives you quiet electric secondary propulsion sized specifically for kayaks and canoes. Use it to cover water between fishing areas, make controlled moves along a bank, or adjust your position without turning every move into another paddling session. With two thrust options and a compact kayak-focused design, you can match the motor to the way and water you fish.
Put Electric Propulsion to Work Throughout Your Fishing Day
- ✅ Cover more water between fishing areas so more of your time and energy can stay focused on casting, working presentations, and finding fish
- ✅ Choose between two thrust options to better match your kayak, load, conditions, and the type of water you regularly fish
- ✅ Work banks, troll productive stretches, and make controlled positioning adjustments with multiple forward and reverse speed settings
- ✅ Fit electric propulsion into a kayak or canoe more naturally with a shorter, adjustable shaft designed around smaller watercraft
- ✅ Position the battery where it works for your rig with extended cabling that gives you more flexibility when balancing gear and battery placement
- ✅ Fish freshwater lakes and rivers or saltwater bays and coastal areas with the same trolling motor platform
| Spec |
Details |
| Thrust Options |
36 lb | 55 lb |
| Propulsion Type |
Secondary propulsion trolling motor |
| Shaft Length |
24" fully adjustable |
| Tiller / Handle |
6" telescoping |
| Input Voltage |
12V DC |
| Max Amp Draw |
29A: 36 lb | 52A: 55 lb |
| Weight |
18 lb: 36 lb | 23 lb: 55 lb |
| Battery Requirement |
12V 50Ah deep-cycle marine battery |
| Speeds |
5 forward | 3 reverse |
| Battery Meter |
5-point LED |
| Battery Cable Length |
5'6" |

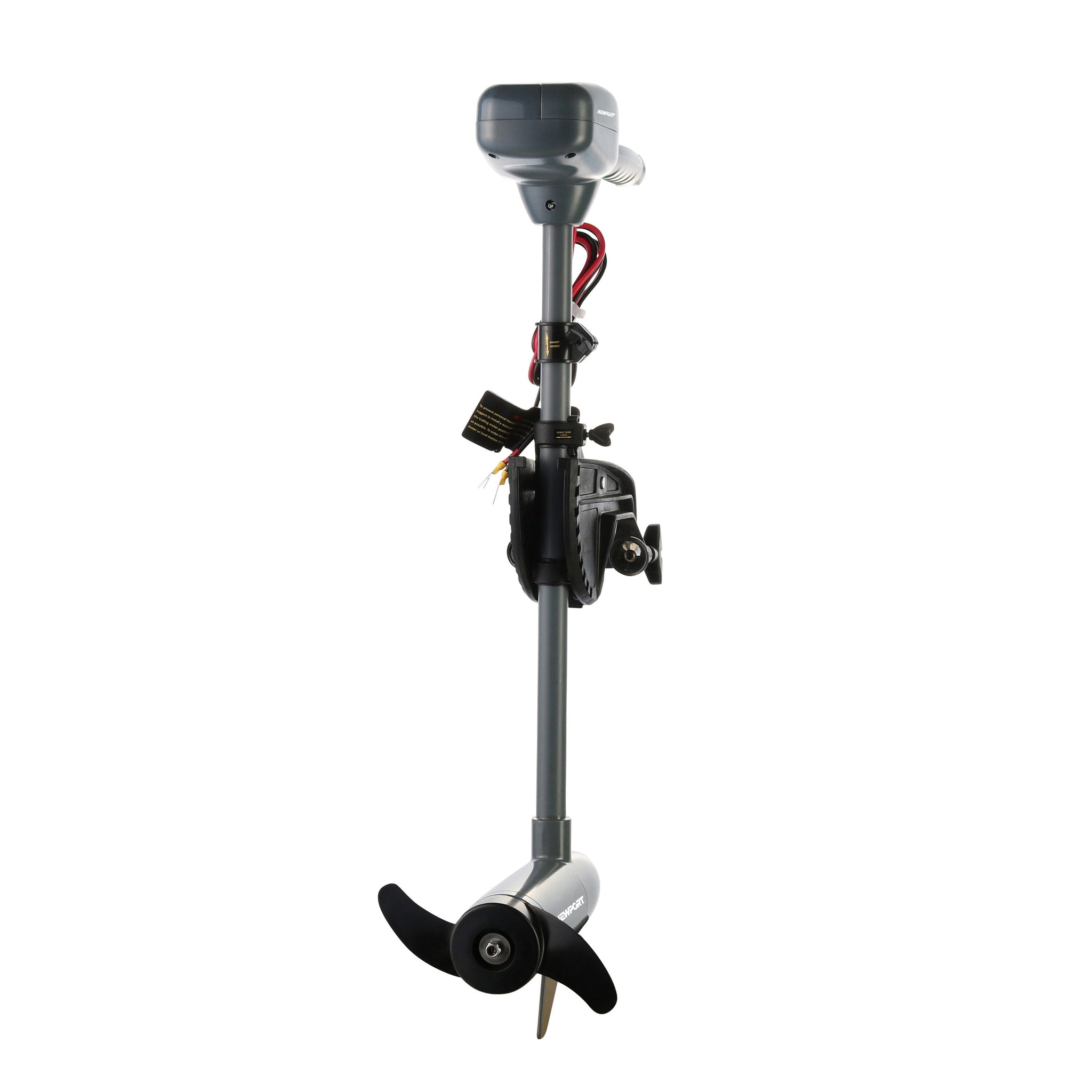

| Propeller |

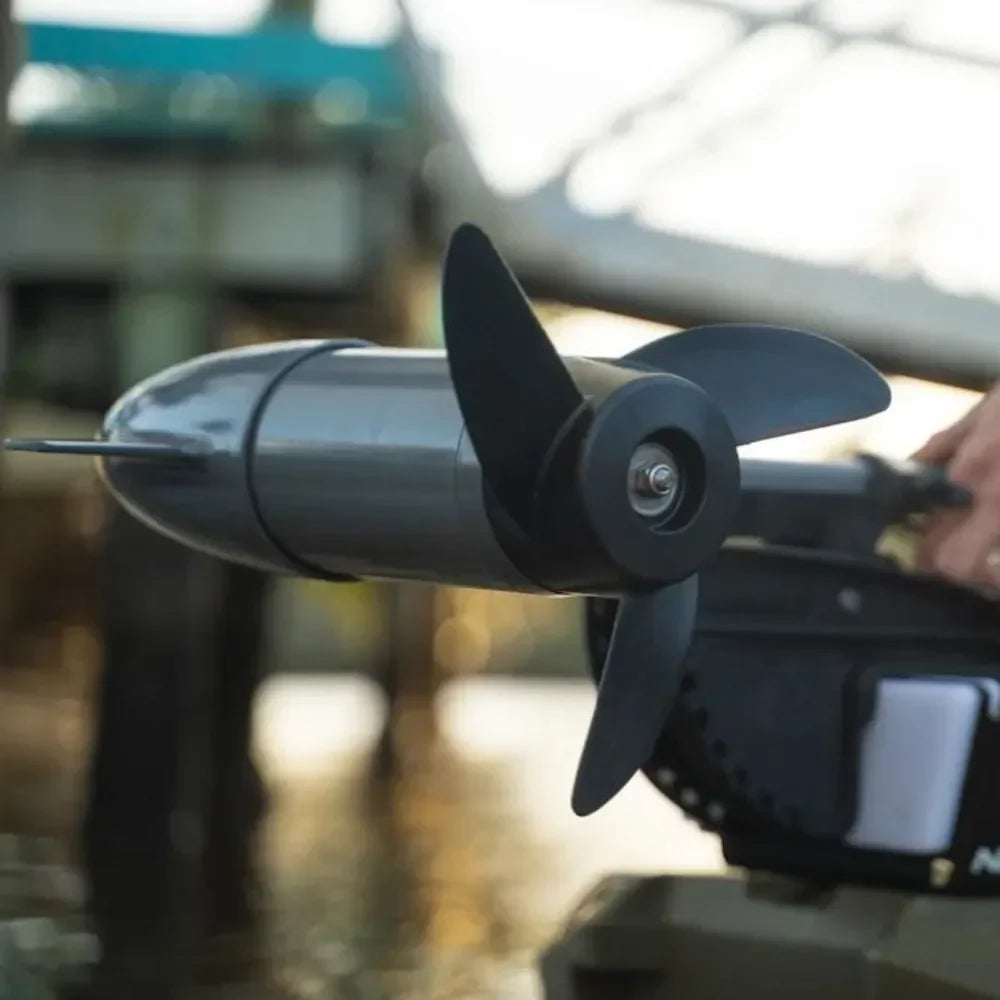

2-blade small: 36 lb | 3-blade large: 55 lb |
| Motor Type |
Brushed |
| Horsepower Equivalent |
0.48 HP: 36 lb | 0.83 HP: 55 lb |
| Water Compatibility |
Freshwater and saltwater |

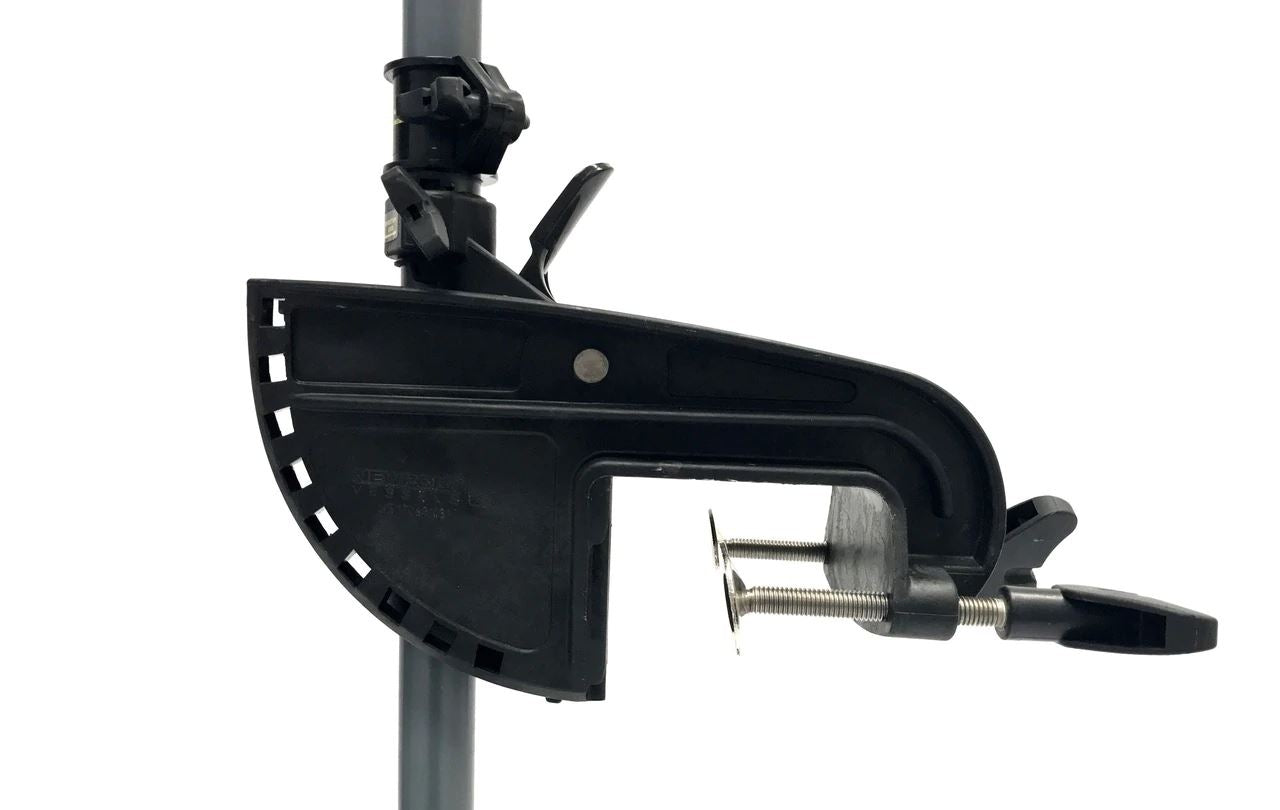

| Mount |
Standard transom mount |
| Included Circuit Breaker |
40A: 36 lb | 60A: 55 lb |
| Included Components |
Kayak Series trolling motor, propeller, propeller installation hardware, circuit breaker, and installation tool |
| Battery |
Sold separately |
| Warranty |
2-year limited warranty |
Real-World Performance

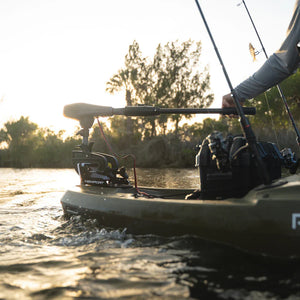

On a fishing kayak, the Kayak Series gives you another way to manage the distance and positioning that happen between casts. Run down a shoreline to the next stretch of cover, cross to another fishing area, troll a presentation, or make smaller forward and reverse adjustments as wind and current move the kayak. When you reach the water you want to fish, the motor becomes a positioning tool rather than simply transportation from the launch.
The kayak-specific dimensions also matter once you start rigging. The shorter adjustable shaft is designed around the lower mounting height of kayaks and canoes, while the extended battery cables give you more freedom to place the battery where it makes sense for your particular setup. That helps electric propulsion fit into the kayak instead of forcing the rest of your fishing gear to work around the motor.
Let the Motor Handle More of the Moving Between Casts
Choose the Kayak Series thrust option that fits your watercraft and fishing conditions, pair it with the proper 12V battery system, and add quiet electric assistance for covering water, trolling, and positioning throughout the day.
Frequently Asked Questions About the Newport Kayak Series Trolling Motor
What makes the Kayak Series different from a standard trolling motor?
The Kayak Series is sized specifically for kayaks and canoes. Its shorter adjustable shaft is better suited to the lower mounting height of small watercraft, while extended battery cabling gives you more flexibility when deciding where the battery should sit in your rig.
Should I choose the 36 lb or 55 lb thrust model?
The right choice depends on your kayak, total load, water conditions, and intended use. The 36 lb model provides a lighter, lower-draw option, while the 55 lb model provides additional thrust for applications where more propulsion is appropriate. Match the motor to your specific watercraft and fishing conditions.
What battery does the Newport Kayak Series require?
Both Kayak Series thrust options operate on 12V DC power. Newport specifies a 12V 50Ah deep-cycle marine battery for the series. The battery is sold separately.
Can I use the Kayak Series in freshwater and saltwater?
Yes. The Kayak Series is designed for both freshwater and saltwater, so it can be used for inland kayak fishing as well as compatible coastal applications. After saltwater use, follow Newport's recommended freshwater rinsing and maintenance practices.
Will the Kayak Series mount directly to every fishing kayak?
No. The motor uses a standard transom mount. Kayaks without a suitable transom or designated motor-mount location may require an appropriate trolling motor mount before the motor can be installed.
