Fish Freshwater or Saltwater with Quiet Electric Control
From working a bass shoreline on the lake to making controlled passes through an inshore fishing area, the Newport NV Series Saltwater Trolling Motor gives anglers quiet electric propulsion for both freshwater and saltwater. Multiple thrust options make it easier to match the motor to your boat and fishing style, while straightforward tiller control lets you spend less time managing the motor and more time positioning the boat where you want to fish.
Built to Help You Fish More Water with Better Boat Control
- ✅ Fish lakes, rivers, bays, and coastal water with one trolling motor designed for both freshwater and saltwater use
- ✅ Move quietly along shorelines, around structure, and through productive areas when a controlled approach matters
- ✅ Choose from multiple thrust options to better match the motor to your boat, load, and intended fishing application
- ✅ Make deliberate speed adjustments for trolling, repositioning, working a bank, or moving between nearby fishing spots
- ✅ Adjust motor depth and tiller position to create a more comfortable and practical operating setup for your boat

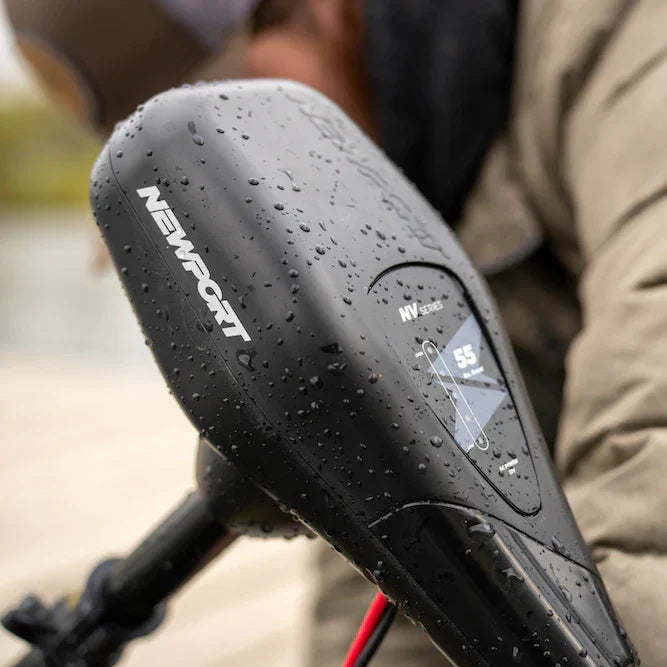

- ✅ Check approximate remaining battery power from the motor head so you have useful power information available while fishing
| Spec |
Details |
| Thrust Options |
36 lb | 46 lb | 55 lb | 62 lb | 86 lb |
| Input Voltage |
12V DC: 36 lb, 46 lb, 55 lb, 62 lb | 24V DC: 86 lb |
| Shaft Length |
30": 36 lb, 46 lb, 55 lb | 36": 62 lb, 86 lb |

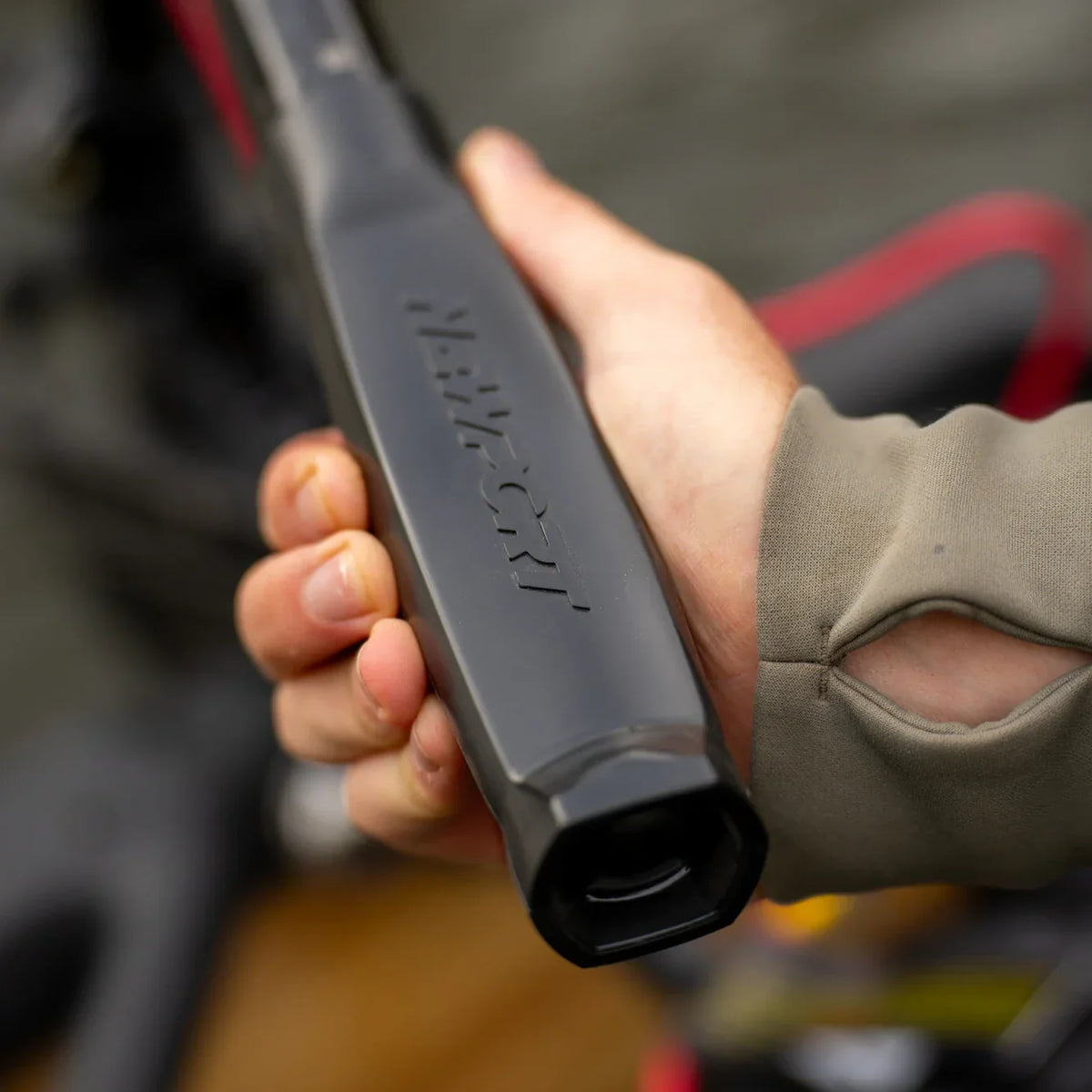

| Tiller / Handle |
6" telescoping |
| Speeds |
5 forward | 3 reverse |

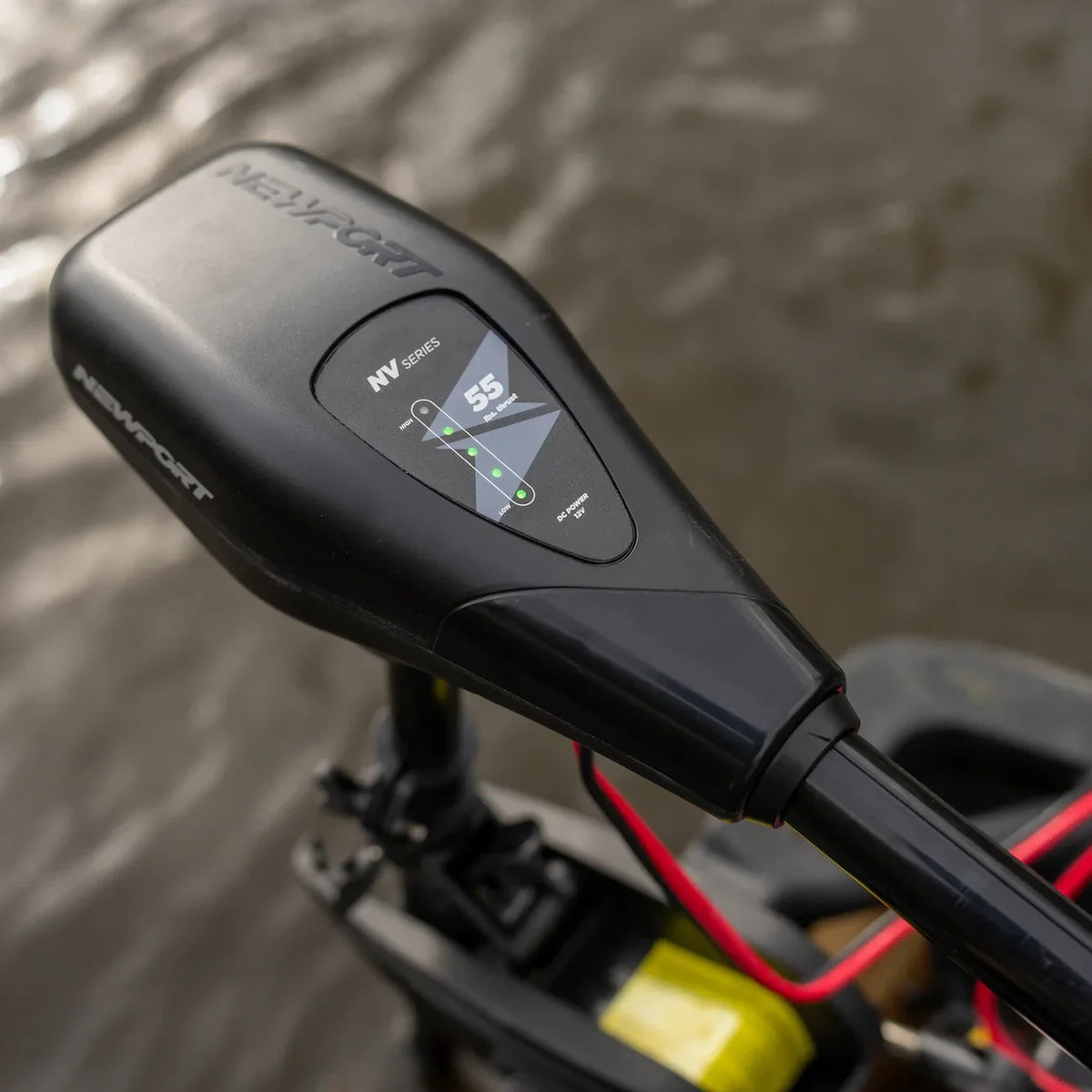

| Battery Meter |
5-point LED |
| Motor Type |
Brushed |
| Water Compatibility |
Freshwater and saltwater |
| Weight |
18 lb | 20 lb | 23 lb | 23 lb | 25 lb |
| Max Amp Draw |
29A | 40A | 52A | 58A | 48A |
| Horsepower Equivalent |
0.48 HP | 0.64 HP | 0.83 HP | 0.93 HP | 1.5 HP |
| Propeller |
2-blade small: 36 lb | 3-blade small: 46 lb | 3-blade large: 55–86 lb |
| Included Circuit Breaker |
40A: 36 lb | 50A: 46 lb | 60A: 55 lb, 62 lb, 86 lb |
| Battery |
External deep-cycle marine battery required; sold separately |
| Included Components |
NV Series motor, propeller, installation tools, drive pin, washer, tightening nut, spanner/wrench, and circuit breaker |
| Warranty |
2-year limited warranty |
Real-World Performance
The NV Series is at home wherever controlled electric propulsion improves the way you fish. On a freshwater lake, use it to work a bank, maneuver around structure, troll a productive stretch, or move quietly through shallow areas. On bays and protected coastal water, it gives you the same deliberate control for working shorelines, positioning around fish-holding areas, and making low-speed moves without relying on your primary engine.

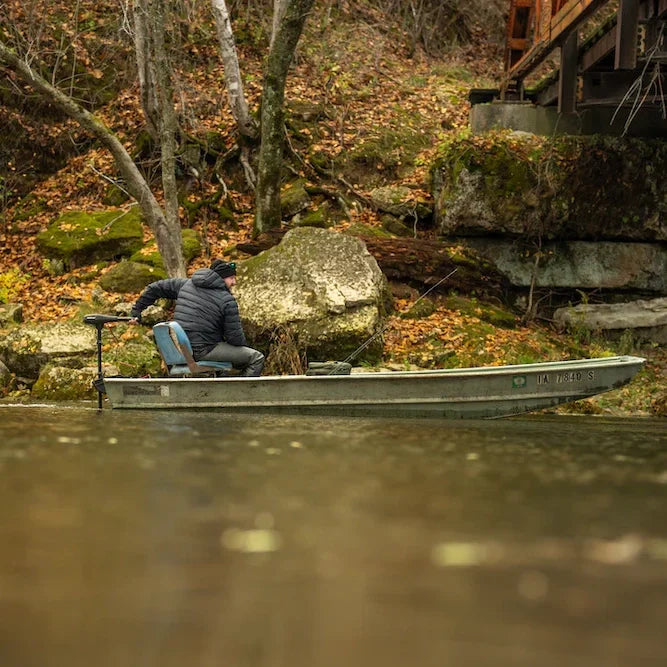

That freshwater-to-saltwater versatility is especially useful for anglers whose fishing changes throughout the season. Instead of dedicating the motor to one type of water, you can rig the NV Series on a compatible jon boat, skiff, inflatable, or other small fishing boat and use it across a wider range of fishing environments.
Add Quiet, Versatile Propulsion to the Way You Fish
Choose the NV Series thrust and shaft configuration that fits your boat, pair it with the correct battery system, and give yourself controlled electric propulsion for fishing everything from inland freshwater to coastal saltwater.
Frequently Asked Questions About the Newport NV Series Trolling Motor
Can the Newport NV Series be used in both freshwater and saltwater?
Yes. The NV Series is designed for use in both freshwater and saltwater, making it a versatile choice for anglers who fish inland lakes and rivers as well as bays and coastal water. After saltwater use, follow Newport's recommended freshwater rinsing and maintenance practices.
Which NV Series thrust option should I choose?
The appropriate thrust depends on your boat, load, operating conditions, and intended use. The NV Series is offered in multiple thrust levels so you can select a model that fits your particular fishing setup rather than simply choosing the highest available thrust.
What battery system does the NV Series require?
The 36 lb, 46 lb, 55 lb, and 62 lb NV Series models operate on 12V DC power. The 86 lb model requires a 24V DC power system. Use a properly matched deep-cycle marine battery system for your specific motor.
What kinds of fishing boats can use the NV Series?

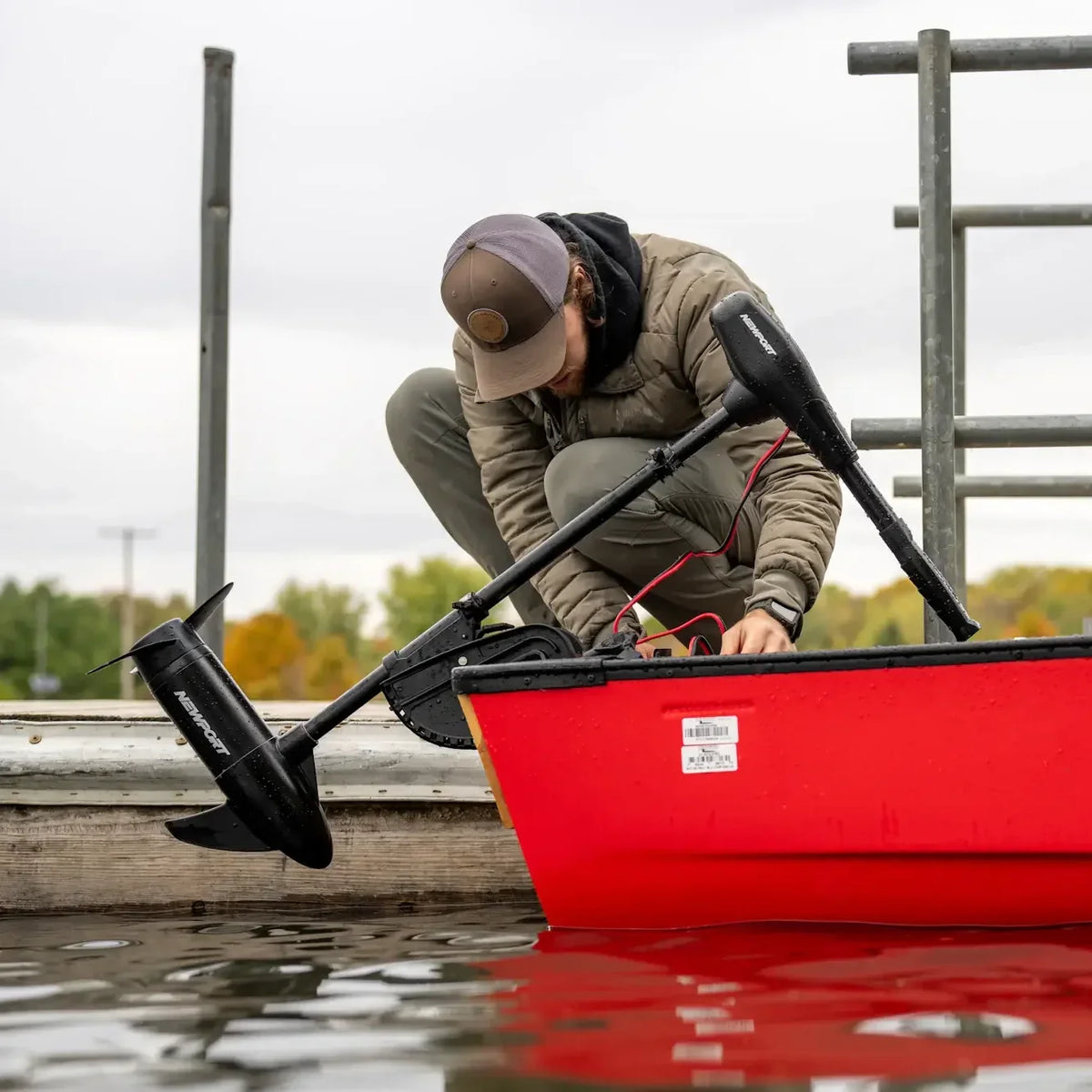

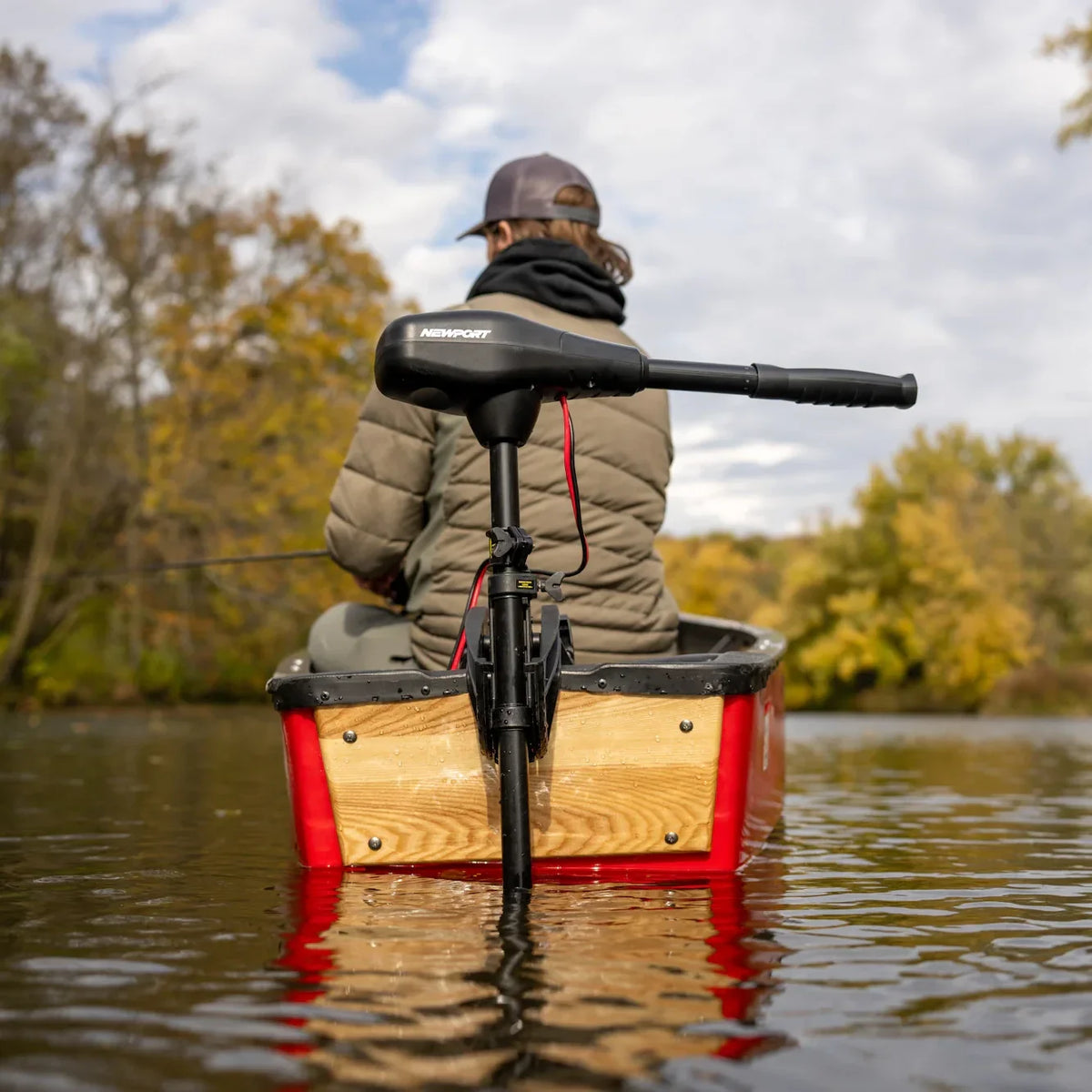

The transom-mount design makes the NV Series useful for many compatible small fishing boats, including jon boats, skiffs, inflatables, and other watercraft with an appropriate mounting location. Confirm the motor's shaft length, thrust, power requirements, and mounting arrangement against your specific boat before purchasing.
Is the NV Series designed for trolling and boat positioning?
Yes. The NV Series is a secondary propulsion trolling motor designed for controlled low-speed movement. It can be used for trolling, working shorelines, repositioning around fishing areas, and other applications where quiet electric boat control is useful.
