Stay Comfortable While Working Productive Water

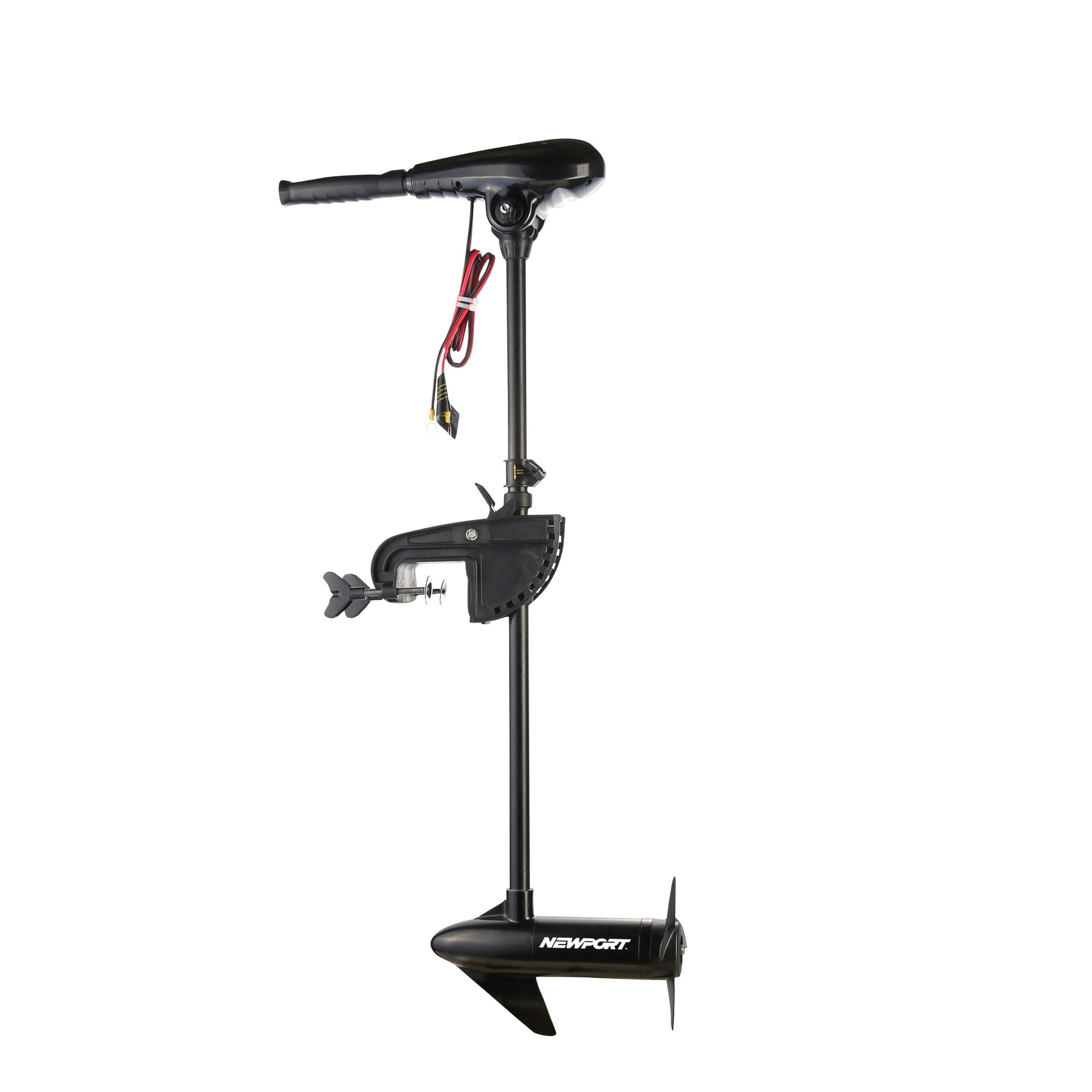

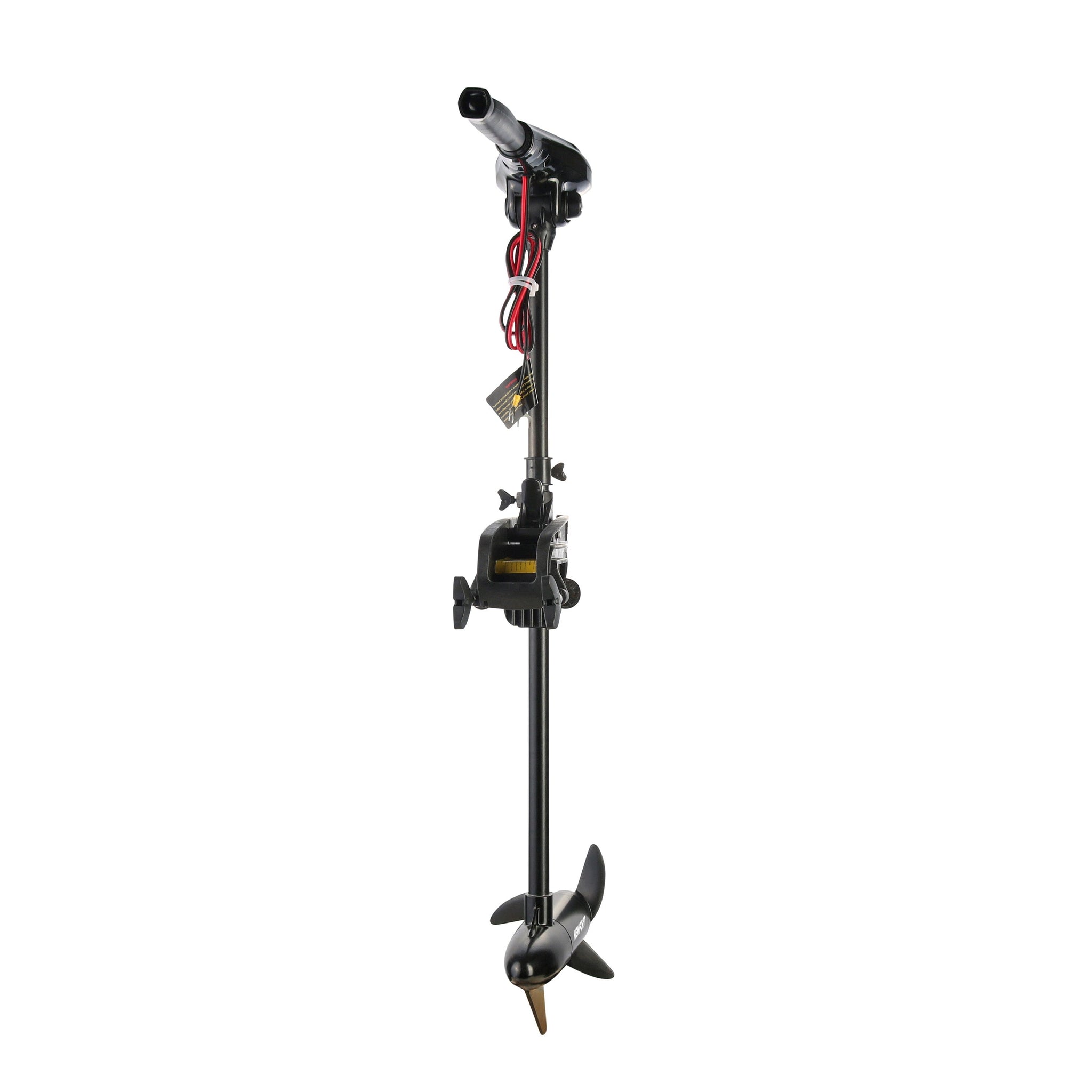

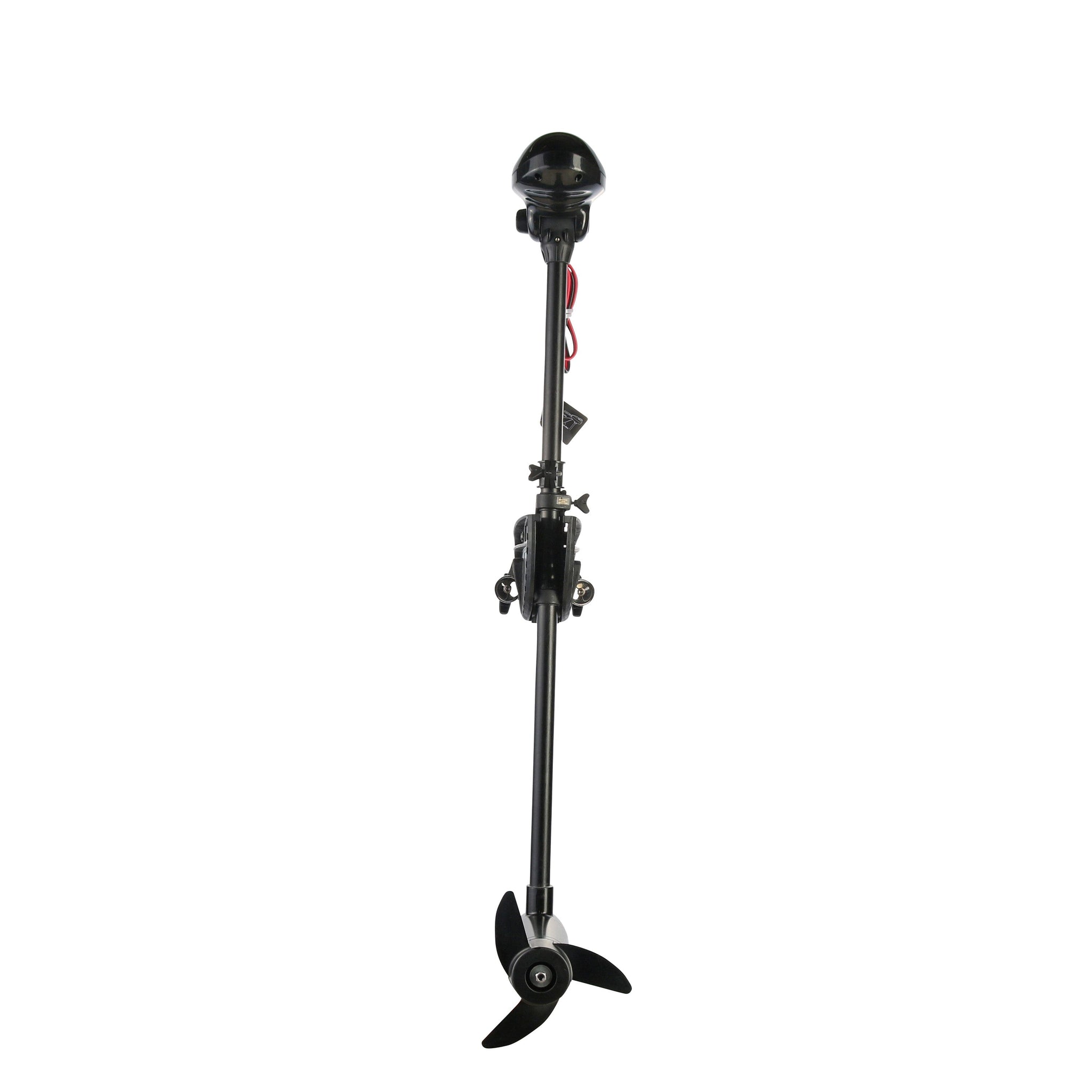

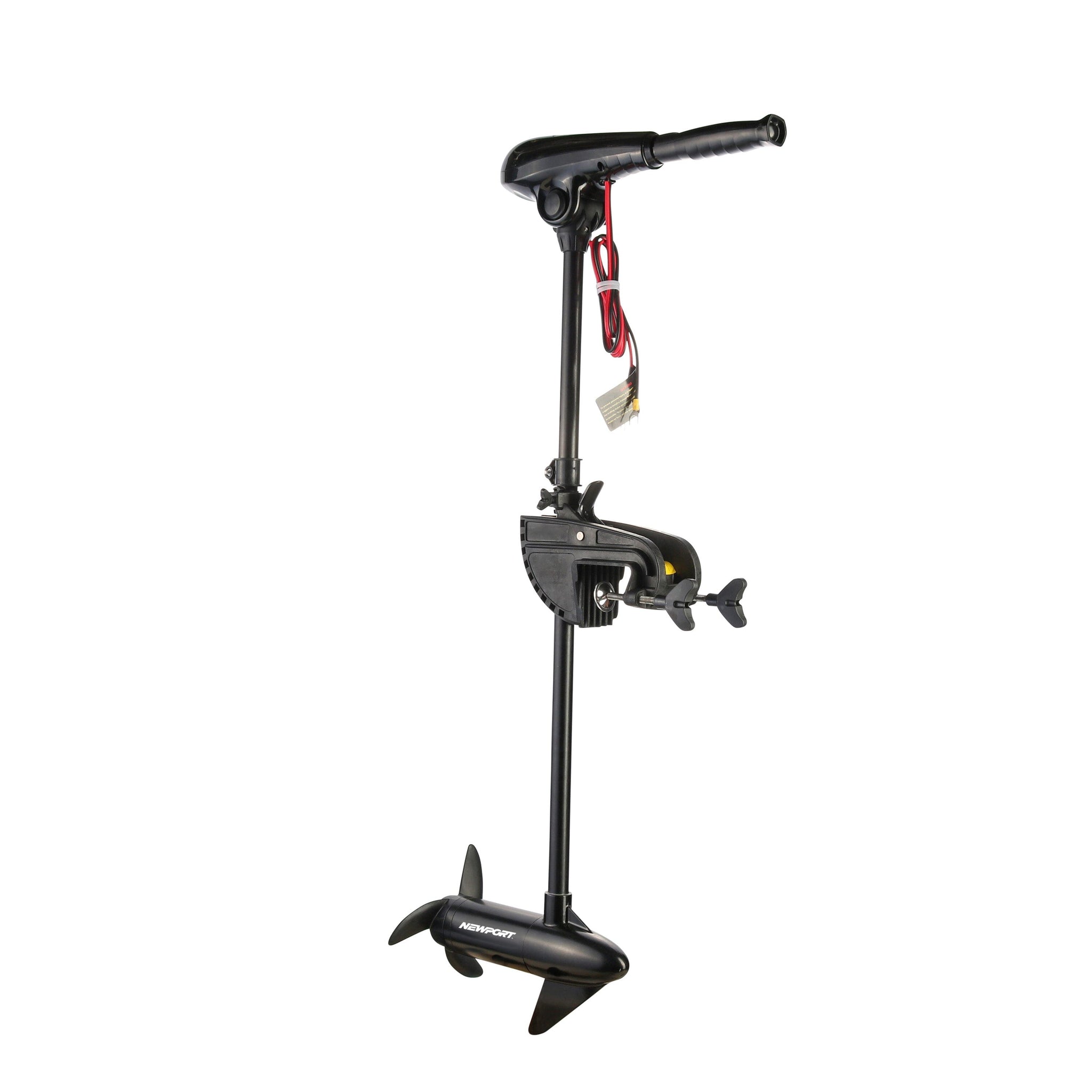

Fishing from a small boat often means changing where and how you operate the trolling motor as you work a shoreline, troll an area, or reposition around structure. The Newport X Series Adjustable Handle Trolling Motor is built around that reality, combining quiet electric propulsion with a highly adjustable tiller that can be extended and tilted to create a more comfortable control position. Use it in freshwater or saltwater to add precise secondary propulsion to a jon boat, dinghy, bass boat, or other compatible transom-mount fishing setup.
Adjust the Motor to the Way You Fish

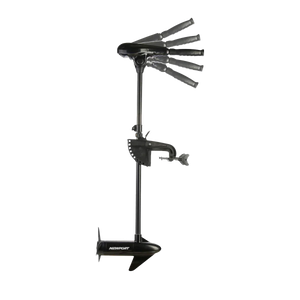

- ✅ Adjust the tiller angle and reach to create a more natural operating position instead of adapting your posture to a fixed handle
- ✅ Work shorelines, structure, and fishing areas with quiet electric propulsion when controlled low-speed movement matters more than simply getting from point A to point B
- ✅ Make deliberate forward and reverse speed changes for trolling, repositioning, approaching a spot, or maneuvering around the boat ramp
- ✅ Fish freshwater lakes and rivers or take the same motor into saltwater bays and coastal environments without changing propulsion systems

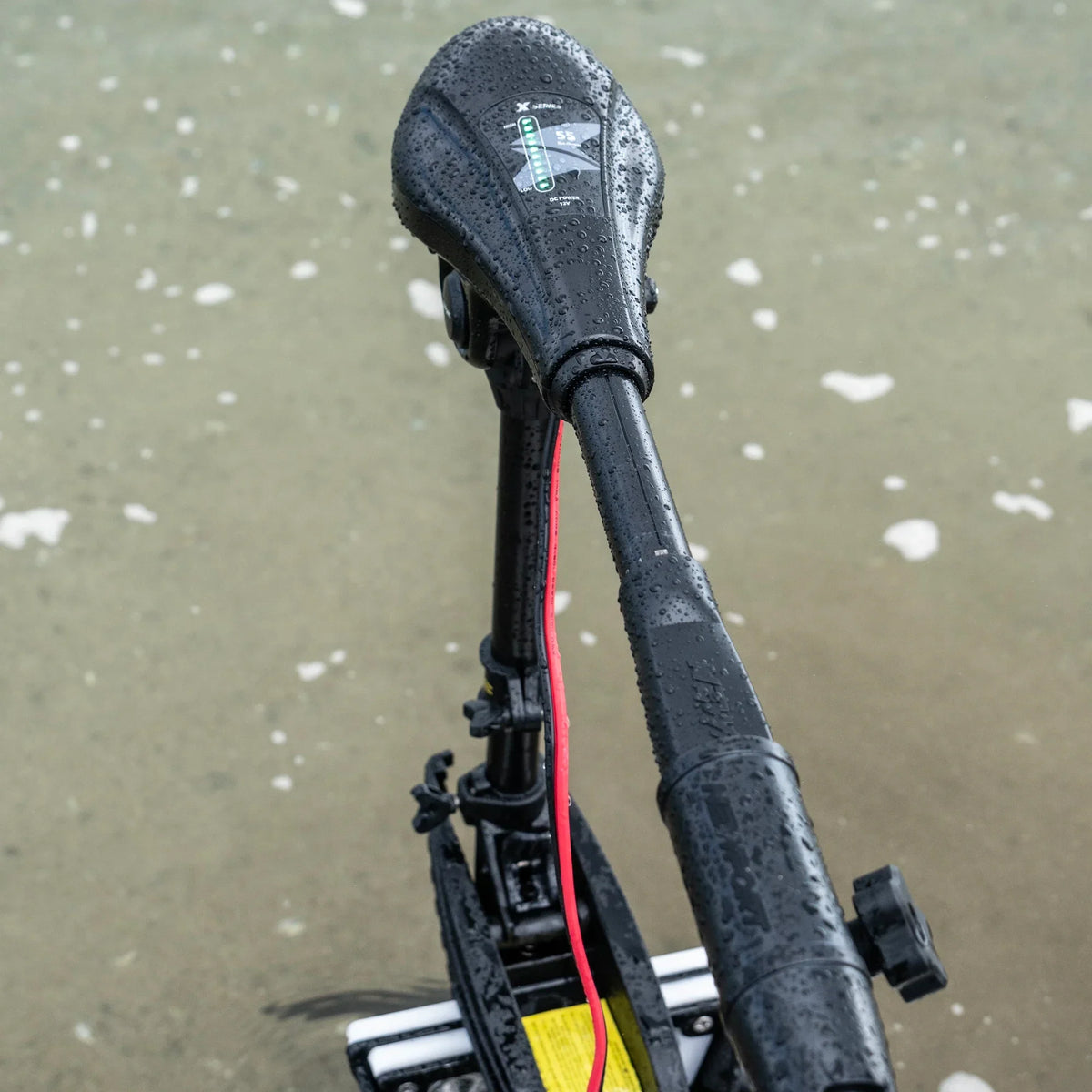

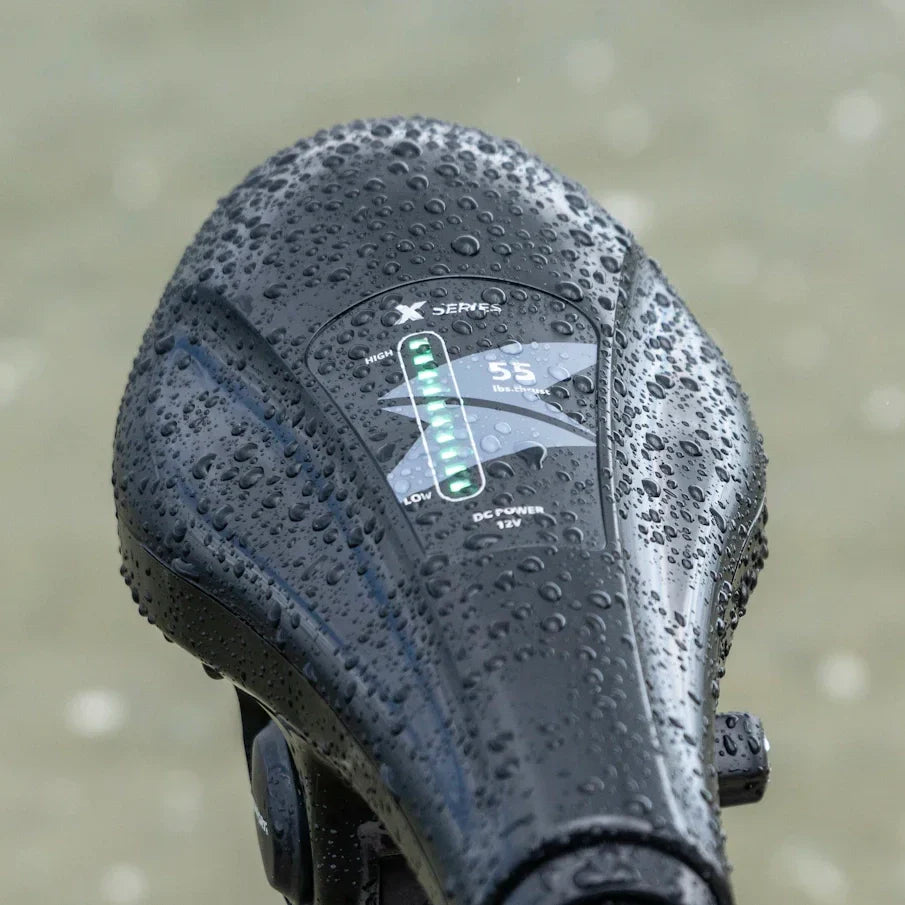

- ✅ Check approximate remaining battery power from the digital display while you fish, keeping useful power information visible at the motor
- ✅ Bring quiet electric control to a wide range of small fishing craft with a compact transom-mount design built around straightforward installation and operation
| Spec |
Details |
| Thrust |
55 lb |
| Shaft Length |
36" |
| Flexible Tiller / Handle |
6" telescoping, 30° tilting |
| Input Voltage |
12V DC |
| Weight |
23 lb |
| External Battery |
12V DC |
| Recommended Battery Capacity |
50Ah minimum |
| Propeller |
3-blade |
| Motor Type |
Brushed |
| Water Compatibility |
Freshwater and saltwater |
| Speeds |
5 forward | 3 reverse |
| Maximum Amp Draw |
52A |
| Horsepower Equivalent |
0.83 HP |
| Battery Display |
Digital battery display |
| Included Circuit Breaker |
50A |
| Included Components |
X Series trolling motor, 3-blade propeller, propeller installation hardware, drive pin, washer, tightening nut, spanner/wrench, and circuit breaker |
| Battery |
Sold separately |
| Warranty |
2-year limited warranty |
Real-World Performance
The X Series earns its place when you spend hours actively controlling the boat while you fish. Tilt and extend the handle to suit your seating position, then use the motor to ease down a bank, maneuver around cover, maintain a trolling pass, or make small adjustments as wind and current move the boat. The adjustable control position is also useful on boats shared by different anglers, since the tiller can be repositioned instead of forcing every operator into the same reach and posture.
Its freshwater and saltwater capability also means the motor does not have to be tied to one style of fishing. Run it on a jon boat or bass boat at an inland lake, then use the same X Series for compatible small-craft fishing in bays and protected coastal water.
Put the Trolling Motor Controls Where You Want Them
Choose the X Series when your fishing calls for quiet secondary propulsion and you want the flexibility to adjust the controls around your boat, your operating position, and the way you actually fish.
Frequently Asked Questions About the Newport X Series Trolling Motor
What makes the X Series different from other Newport trolling motors?
The X Series is Newport's trolling motor option focused on handle adjustability. Its telescoping tiller can also tilt up or down, letting you change the control position to better suit the boat, seating arrangement, and person operating the motor.
Can the Newport X Series be used in freshwater and saltwater?
Yes. The X Series is designed for both freshwater and saltwater use, making it suitable for anglers who fish lakes and rivers as well as bays and coastal water. After saltwater use, rinse the motor with fresh water and follow Newport's recommended maintenance practices.
What battery does the X Series require?
The X Series is a 12V trolling motor. Newport recommends a 12V deep-cycle marine battery with at least 50Ah of capacity. The battery is sold separately.
What boats can use the X Series trolling motor?

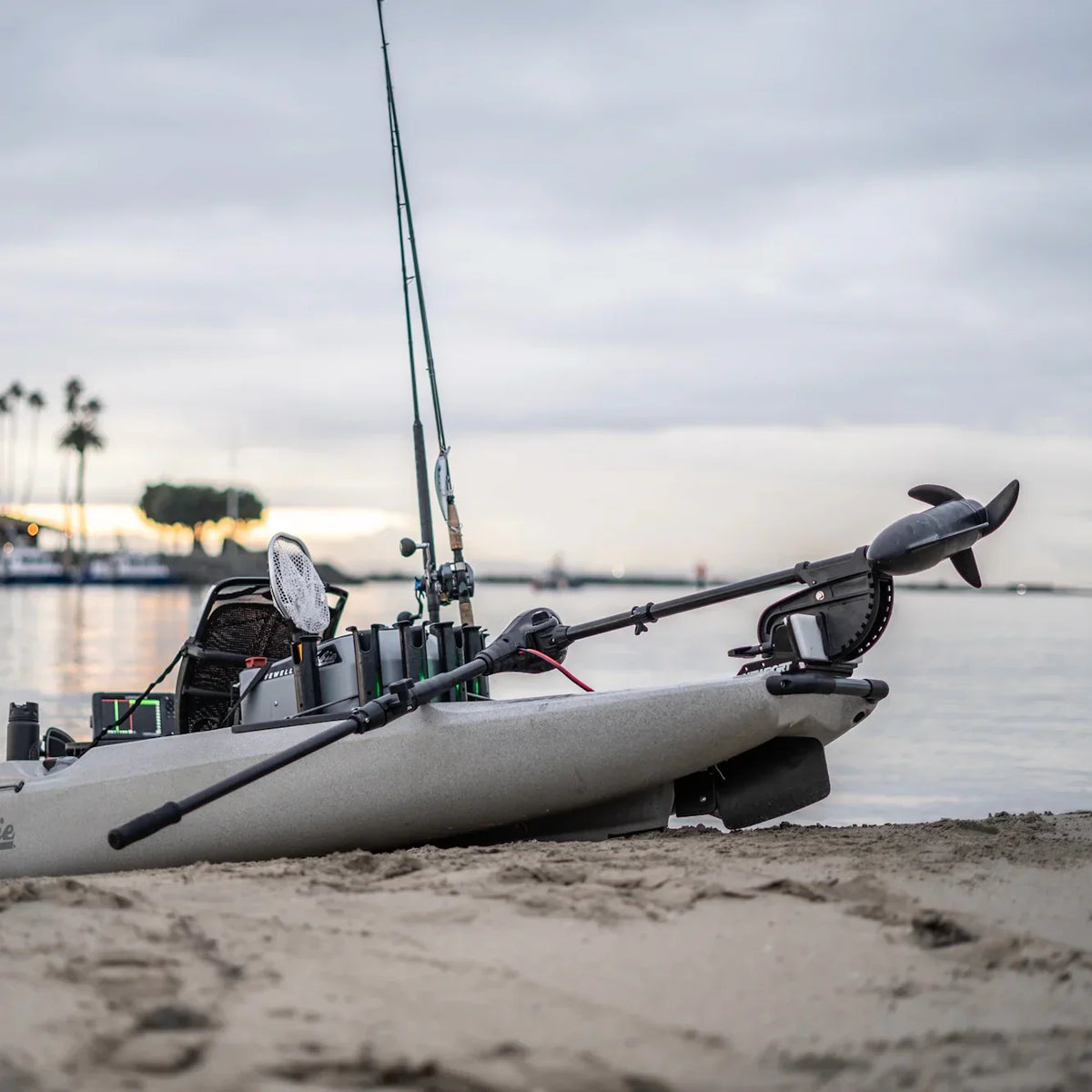

The X Series can be used on compatible boats with an appropriate transom mounting location. Newport identifies small watercraft such as jon boats, dinghies, and bass boats as applications for the series. Confirm the shaft length, mounting arrangement, and electrical requirements against your specific boat before purchasing.
Is the X Series a primary propulsion motor?
No. The X Series is a trolling motor designed for secondary propulsion. It is intended for applications such as trolling, working shorelines, positioning around fishing areas, and controlled low-speed movement rather than replacing a primary outboard.
